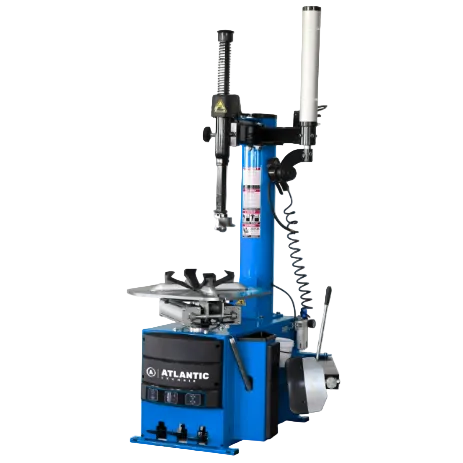

Wheel assembly machine ATC-24 PRO

The ATC-24 PRO wheel mounting machine with a right auxiliary arm is designed for convenient and efficient tire mounting and demounting. The design is adapted to work with rims of various sizes, ensuring stable fixation and smooth control in everyday service activities.

The ATC-24 PRO wheel mounting machine is designed for intensive use in car repair shops. The device is equipped with a right auxiliary arm , which makes it easier to mount and remove tires, especially when working with stiffer or low-profile tires, and also saves workspace.

The large cylinder piston is made of high-density aluminum casting, which ensures stable operation and resistance to loads. Precision-cast steel clamps allow for reliable fixation of rims, and additional plastic protection helps reduce the risk of tire and rim damage during operation.

The reinforced internal structure reduces the likelihood of mechanical deformation, and the universal bead press allows for convenient installation work. The clamping range of the clamps is adjustable by changing the position of the slider, making the machine adaptable to wheels of various sizes.

          Main features

• Right helping hand for more comfortable work
• High Density Aluminum Cylinder Piston
• Steel precision casting chucks
• Reinforced internal structure
• Plastic protectors for tires and rims
• Universal on-board printer
• Metal control pedal
• Adjustable rim locking range
• CE certificate of conformity
•


           Technical specifications

• Rim locking from the outside: 10-20 inches
• Rim locking from the inside: 13-24 inches
• Maximum wheel diameter: 1040 mm
• Maximum wheel width: 3-14 inches
• Rotation speed: 7 rpm
• Electric motor power: 1.1 kW
• Power supply: 230V
• Working pressure: 8–10 bar
• Weight (net / gross): 205 / 234 kg
• Package dimensions: 1120 × 860 × 860 mm
