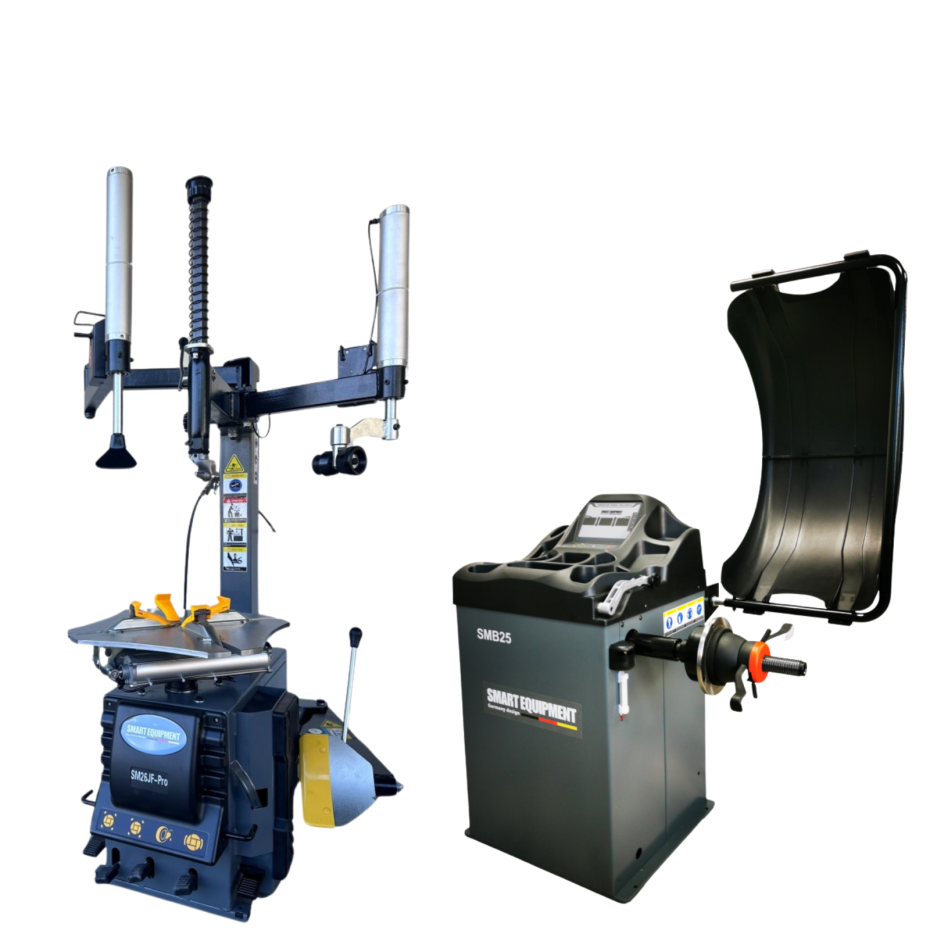

SMART SET STANDARD+ kit SMB25+SM26JF PRO Code: SMART SET STANDARD+

SMART SET STANDARD+ is a professional wheel service equipment set consisting of the SMB25 wheel balancing machine with laser positioning system and the SM26JF PRO PRO series mounting machine. This set ensures high accuracy, reliability and efficiency in car service stations and workshops.

The SMART SET STANDARD+ kit is designed to provide car repair shops with the highest level of wheel mounting and balancing equipment. The SMB25 balancing machine with laser, automatic stop and LED lighting ensures accurate wheel balancing, while the SM26JF PRO mounting machine with additional functions allows for quick and efficient mounting and demounting of tires.

SMB25 wheel balancing machine

Features:

• Automatic wheel dimension reading
• Laser positioning system
• Automatic stop at the desired position
• LED lighting for precise work
• Intuitive control screen

Technical parameters:

• Wheel diameter: 10"-24"
• Maximum wheel weight: 70 kg
• Balancing accuracy: ±1 g
• Balancing speed: 200 rpm
• Power supply: 220V / 50Hz
• Shaft diameter: 40 mm

Package:

• SMB25 balancing machine
• Quick-clamping nut
• Calibrated weight
• Measuring caliper
• Protective cover

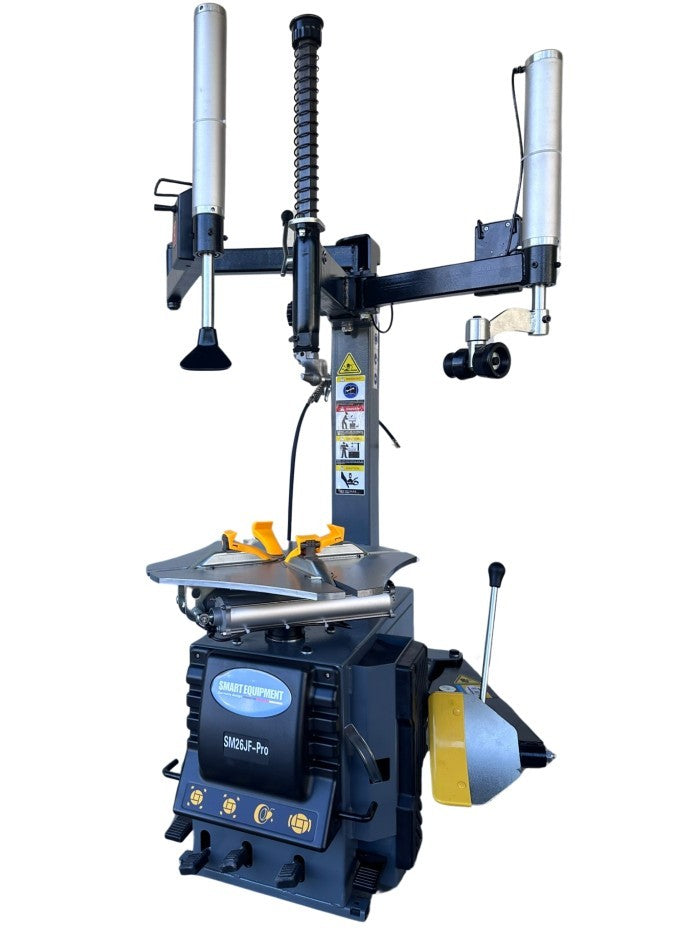

SM26JF PRO wheel mounting machine

Features:

• Reinforced PRO series construction
• Pneumatic assistance for complex installation tasks
• Powerful gearbox for heavy loads
• Strong locking clamps ensure stable wheel hold
• Air pressure system for mounting and removing tires

Technical parameters:

• Maximum wheel diameter: 39” (990 mm)
• Internal wheel mounting: 12”-24”
• External wheel mounting: 10”-21”
• Working pressure: 8-10 bar
• Speed reducer: 6.5 rpm
• Power supply: 220V

Package:

• SM26JF PRO assembly machine
• Pneumatic auxiliary pusher
• Tire lift lever
• Air filtration and lubrication system
