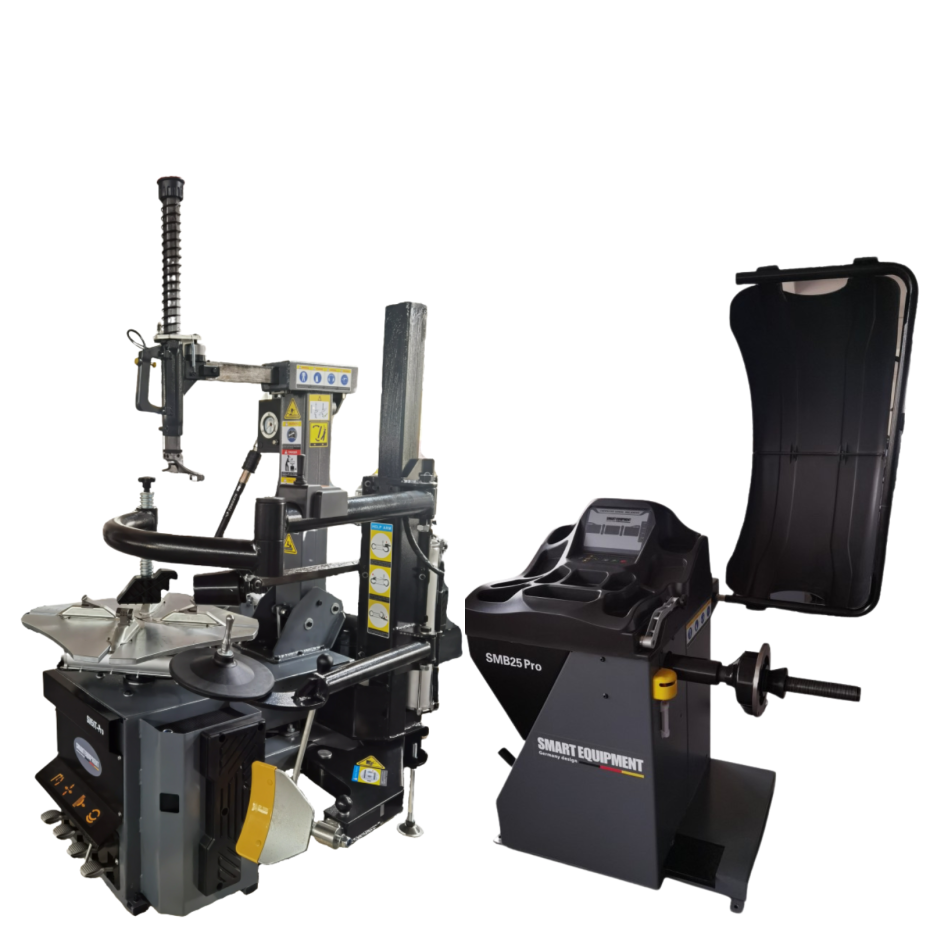

SMART SET PROFI+ SET SMB25 PRO+SM50T PRO

SMART SET PROFI+ is a high-end wheel mounting and balancing equipment set for professional car repair shops. The SMB25 PRO wheel balancing machine with laser technology, automatic braking and sonar measurement ensures precision, while the SM50T PRO automatic wheel mounting machine with Boost2Force system and two-speed drive allows for quick and safe mounting of even the most complex tires.

SMART SET PROFI+ is designed for professionals who value precision, efficiency and ease of use. The SMB25 PRO wheel balancer is equipped with a laser balancing system, automatic braking and a sonar sensor that helps to set the balancing parameters with high precision. The SM50T PRO wheel balancer with Boost2Force system and two-speed drive ensures stable work with various types of tires, including RUNFLAT and low-profile models.

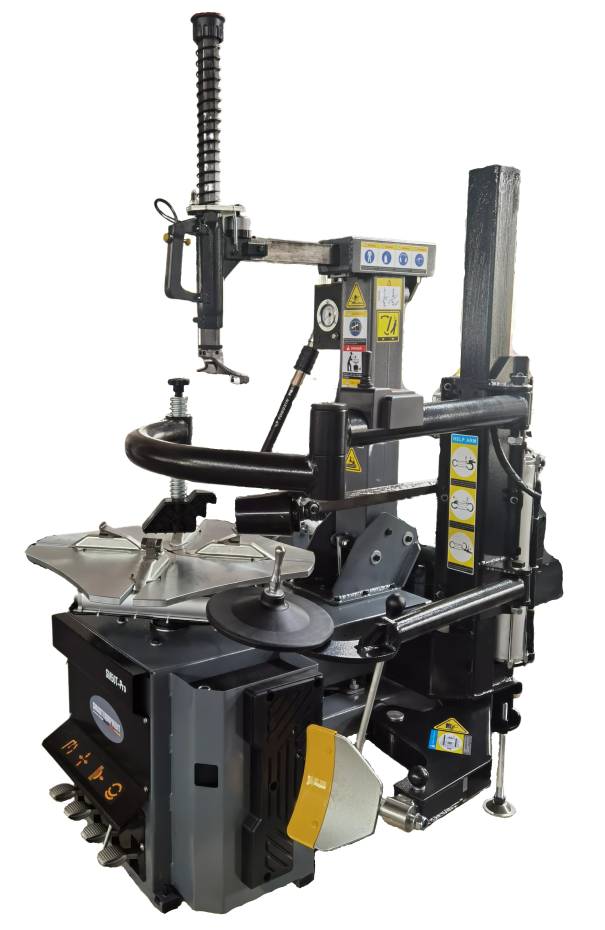

SM50T PRO automatic wheel mounting machine

Features:

Mounting table with grip up to 26"
"TILT BACK" type - machine with automatically folding mounting column and automatic positioning of the mounting head.
"BOOST" - integrated powerful impact inflation device
"INFLATE BOX" - integrated foot-controlled tire inflation system with pressure gauge.
"PROFI HELP ARM" Integrated pneumatic clamping device for low profile tires with lifting plate, active clamp, stationary roller.
3-speed electric motor
Rotation speed adjustable by pedaling
Aluminum alloy control pedal construction
"X TYPE" profiled mounting table
15 mm thick mounting table
"2FORCE" - 200 mm diameter tire bead pressing cylinder - larger diameter - greater pressing force
Possibility to install motorcycle adapters
"ALU PROTECT" set of plastic protectors for light alloy rims

Technical parameters:

Electric motor power 0.75/1.1 kW
Power supply 400V / 3 phases
Maximum wheel diameter – 45” (1140 mm)
Maximum wheel width – 14” (355 mm)
External grip from 12” to 23”
Internal grip from 14” to 26”
Compressed air supply 8-10 BAR

Kit :

Tire inflation system Inflate BOX – 1 pc;
Impact inflation system BOOST – 1 pc
Low-profile clamp PROFI HELP ARM – 1 pc
Mounting – 1 pc;
Clamp guards – 1 set
Tire bead breaker guard – 1 pc
Mounting head guards – 3 pcs
Roller for mounting head – 1 pc

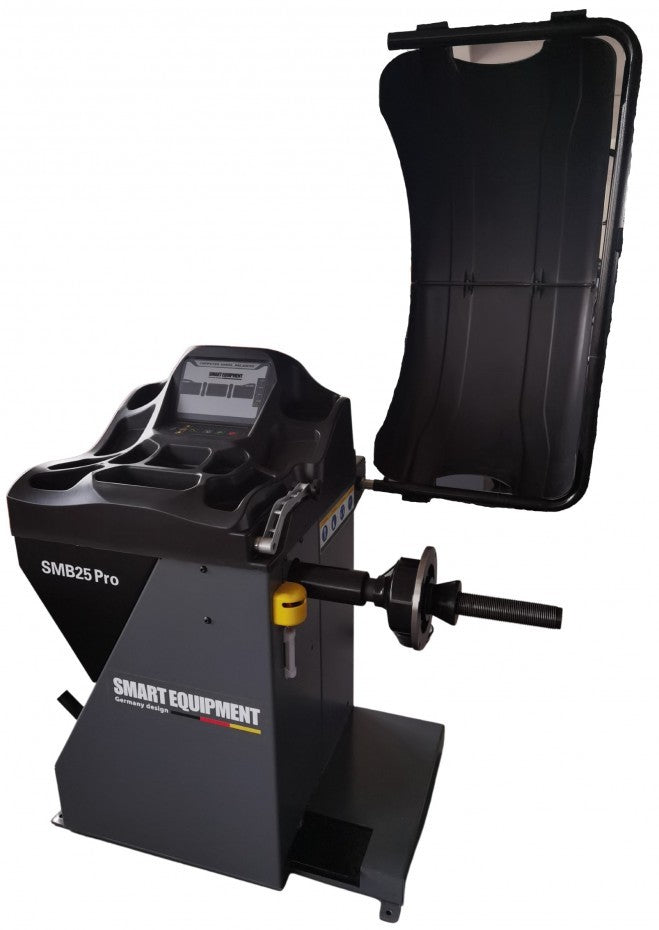

SMB25 PRO wheel balancing machine

Features:

• Laser balancing positioning system
• Sonar measurement ensures greater accuracy
• Automatic wheel data reading
• LED lighting makes work easier
• Automatic stop at optimal balancing position
• Intuitive control

Technical parameters:

Rim diameter from 10" to 24"
Rim width from 1.5" to 17.5"
Maximum wheel diameter – 1000 mm
Accuracy +/-1 g
Maximum wheel weight – 65 kg;
Power supply – 230V, 50 Hz.
Power – 0.2 kW
Angle resolution - 2.8125'(360/128）
Balancing time ~7 seconds
Maximum speed – 200 rpm

Package :

Rim width gauge – 1 pc;
Weight removal pliers – 1 pc;
Quick-clamping handle with two covers – 1 pc;
Set of 4 centering cones;
Calibration weight – 1 pc.
