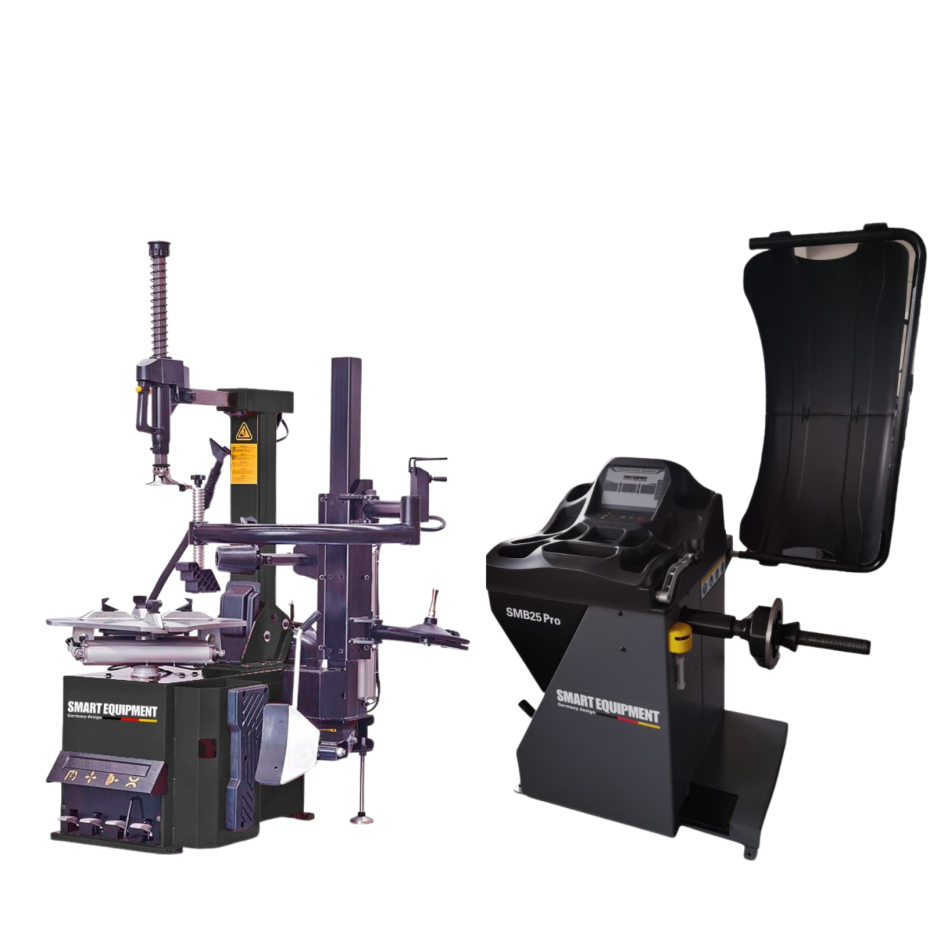

SMART SET PROFI is designed for professional car repair shops that require precision, reliability and efficiency. The SMB25 PRO wheel balancer features laser technology, automatic braking and a sonar sensor that allows you to quickly and accurately set the balancing parameters. The SM50T automatic wheel mounting machine with pneumatic auxiliary arms and a two-speed drive ensures safe and convenient work with various types of tires, including low-profile and RUNFLAT models.

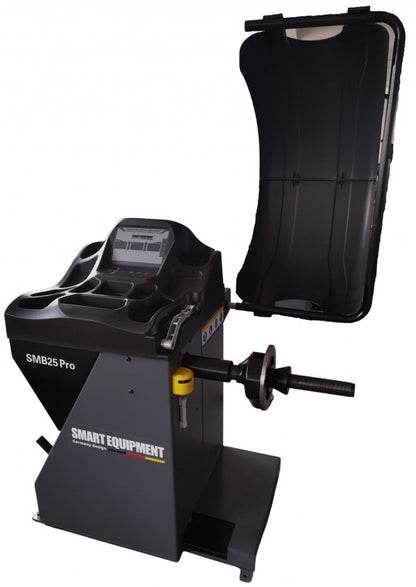

SMB25 PRO wheel balancing machine
Features:
- Laser balancing positioning system
- Sonar measurement for precise determination of balancing parameters
- Automatic wheel data reading
- LED lighting for working in dark environments
- Automatic stop at the desired position
- Intuitive control screen with clearly presented information
Technical parameters:
- Rim diameter from 10" to 24"
- Rim width from 1.5" to 17.5"
- Maximum wheel diameter – 1000 mm
- Accuracy +/-1 g
- Maximum wheel weight - 65 kg;
- Power supply – 230V, 50 Hz.
- Power – 0.2 kW
- Angular resolution - 2.8125'(360/128)
- Balancing time ~7 seconds
- Maximum speed – 200 rpm
Package:
- Rim width gauge – 1 pc.;
- Weight removal pliers - 1 pc.;
- Quick-clamping handle with two covers - 1 pc.;
- Set of 4 centering cones;
- Calibration weight – 1 pc.

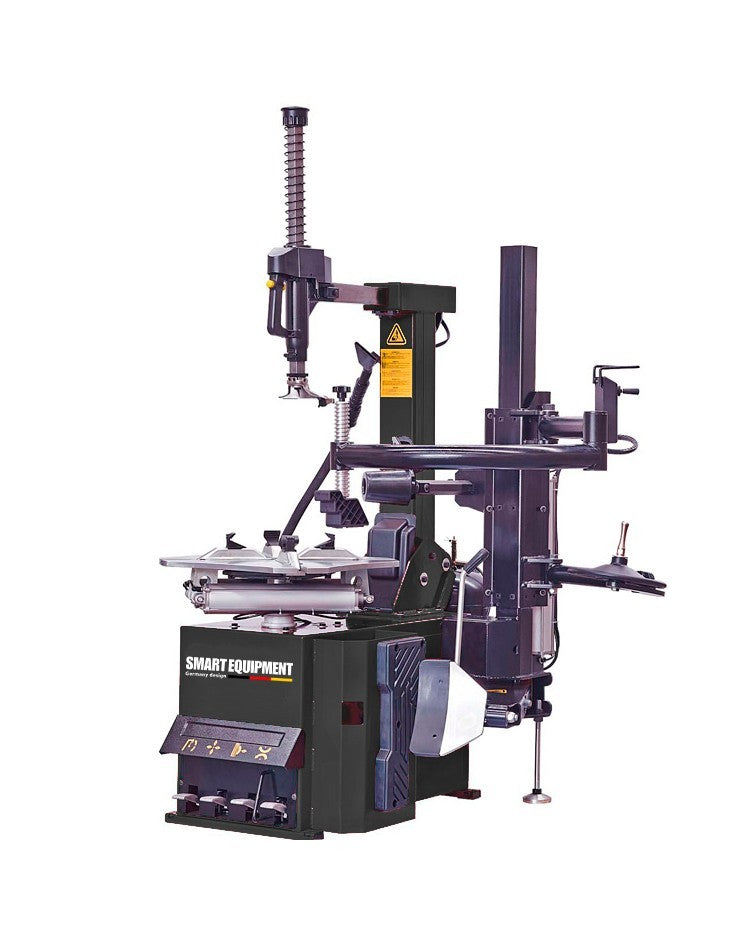

SM50T automatic wheel mounting machine
Features:
- Automatic mounting head movement system
- Two-speed drive for optimal performance with a variety of tires
- Pneumatic assist system for complex installation work
- Clamp with adjustable clamping force ensures stable wheel holding
- Suitable for low profile and RUNFLAT tires
Technical parameters:
- Maximum wheel diameter: 43” (1100 mm)
- Internal wheel mounting: 12"-28"
- External wheel mounting: 10”-26”
- Working pressure: 8-10 bar
- Assembly speed: 6.5-13 rpm
- Power supply: 220V/380V
Package:
- SM50T automatic assembly machine
- Pneumatic auxiliary pusher
- Tire lift lever
- Air filtration and lubrication system
