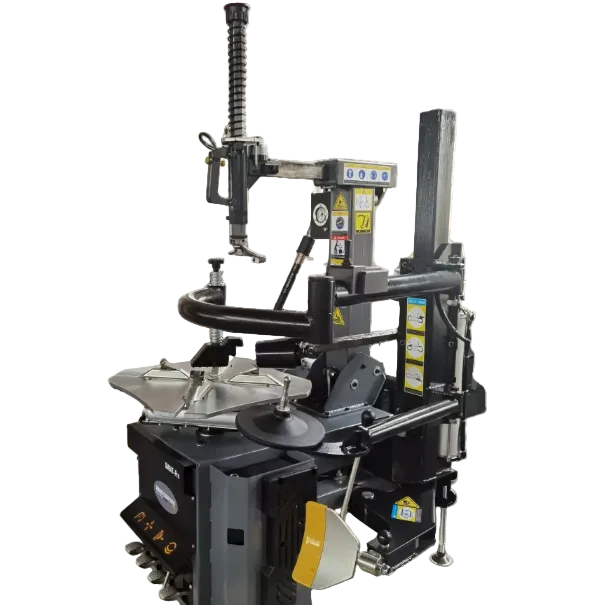

SM50T PRO Automatic wheel mounting machine

1. Assembly table with grip up to 26"
2. "TILT BACK" type machine with automatically folding mounting column and automatic positioning of the mounting head.
3. "2FORCE" - 200 mm diameter tire bead pressing cylinder
4. BOOST – integrated powerful impact inflation device
5. "INFLATE BOX" - integrated foot-controlled tire inflation system with pressure gauge.
6. "PROFI HELP ARM" pneumatic clamping device for low profile tires with lifting plate, active clamp, stationary roller.

7. 3-speed electric motor
8. "X TYPE" 15mm thick profiled assembly table
9. "ALU PROTECT" set of plastic protectors for alloy wheels
10. Rotation speed is regulated by pressing the pedal

PRO series tire changer up to 26" with pneumatically folding column

Main features:

Mounting table with grip up to 26"
"TILT BACK" type - machine with automatically folding mounting column and automatic positioning of the mounting head.
"BOOST" - integrated powerful impact inflation device
"INFLATE BOX" - integrated foot-controlled tire inflation system with pressure gauge.
"PROFI HELP ARM" Integrated pneumatic clamping device for low profile tires with lifting plate, active clamp, stationary roller.
3-speed electric motor
Rotation speed adjustable by pedaling
Aluminum alloy control pedal construction
"X TYPE" profiled mounting table
15 mm thick mounting table
"2FORCE" - 200 mm diameter tire bead pressing cylinder - larger diameter - greater pressing force
Possibility to install motorcycle adapters
"ALU PROTECT" set of plastic protectors for light alloy rims

Technical parameters:

Electric motor power 0.75/1.1 kW
Power supply 400V / 3 phases
Maximum wheel diameter – 45” (1140 mm)
Maximum wheel width – 14” (355 mm)
External grip from 12” to 23”
Internal grip from 14” to 26”
Compressed air supply 8-10 BAR

Complete set:

Tire inflation system Inflate BOX – 1 pc;
Impact inflation system BOOST – 1 pc
Low-profile clamp PROFI HELP ARM – 1 pc
Mounting – 1 pc;
Gripper guards – 1 set
Tire bead breaker guard – 1 pc
Mounting head guards – 3 pcs
Roller for mounting head – 1 pc

Warranty period – 24 months.
