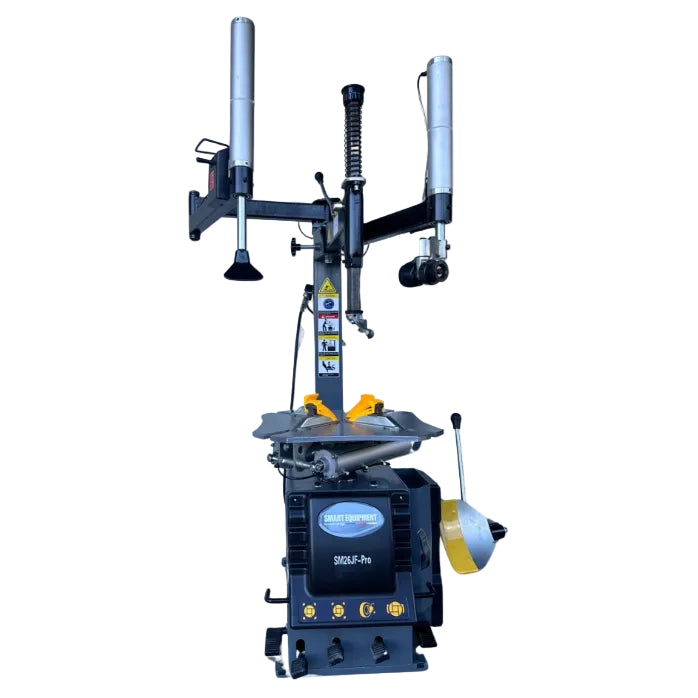

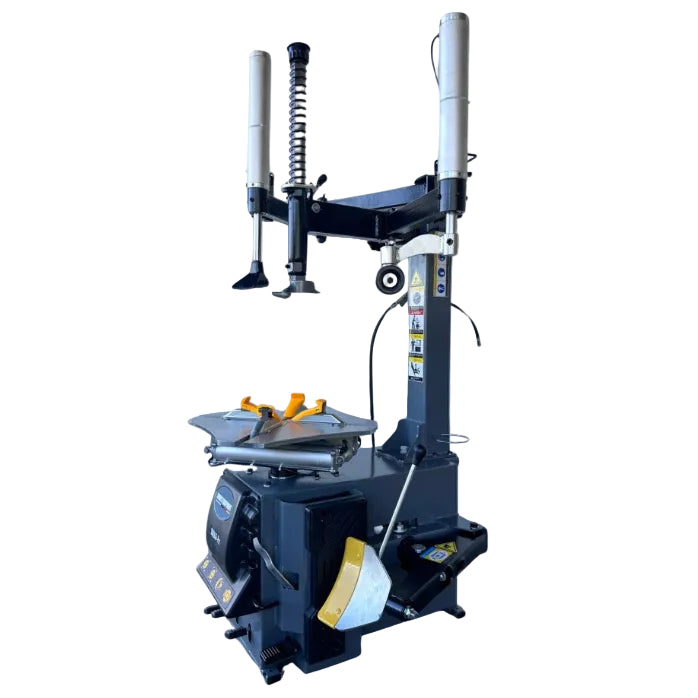

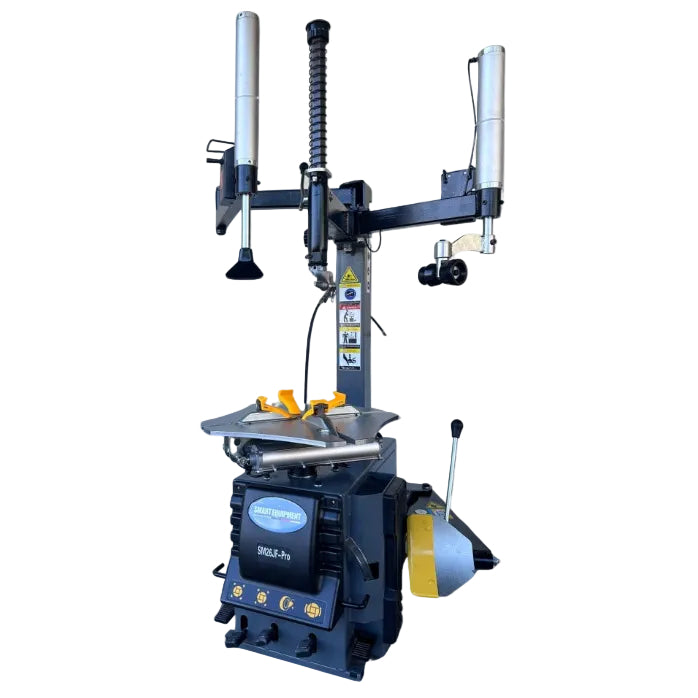

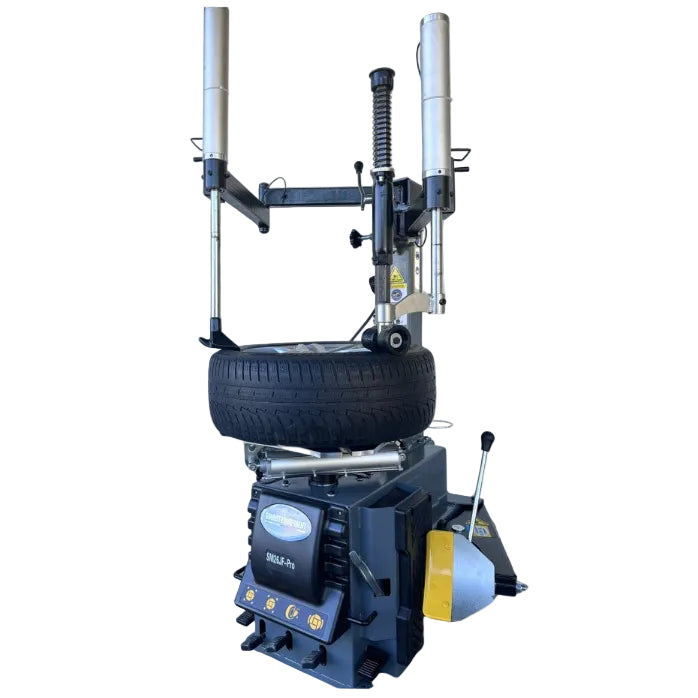

SM26JF PRO Wheel alignment machine PRO series 24"/220V SMART EQUIPMENT

Main features:

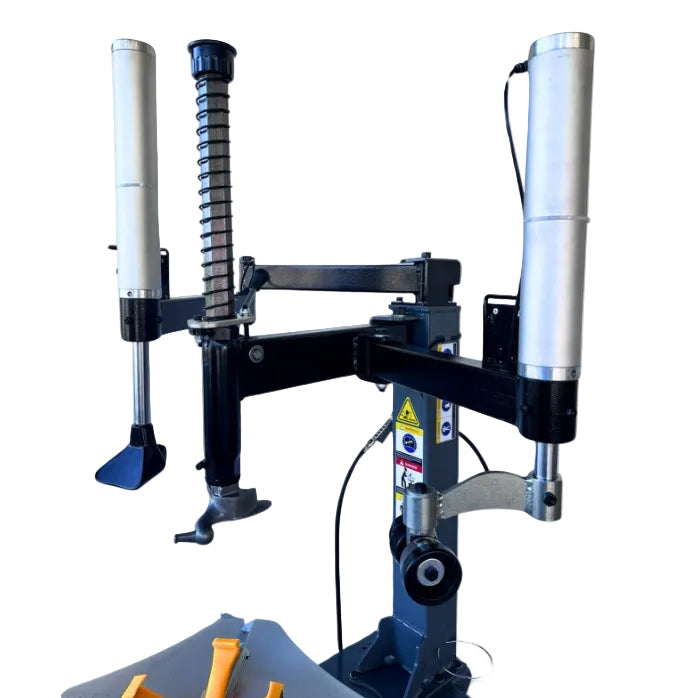

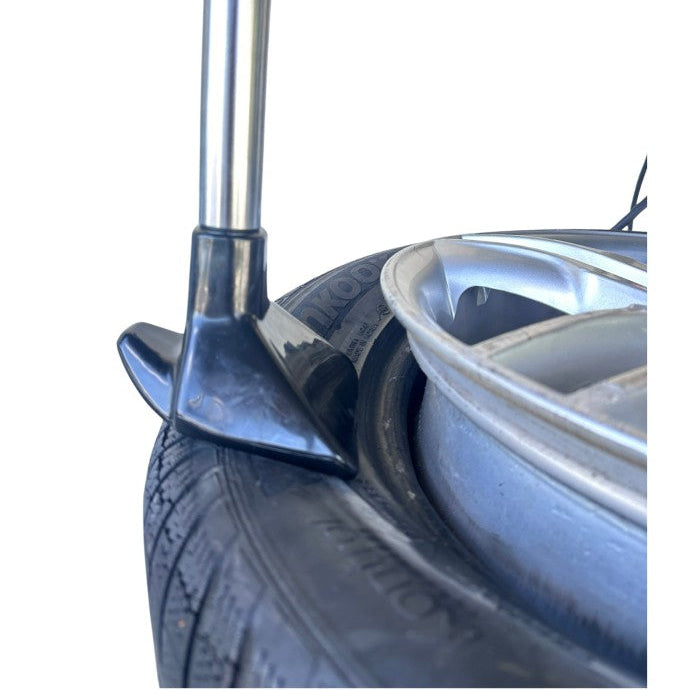

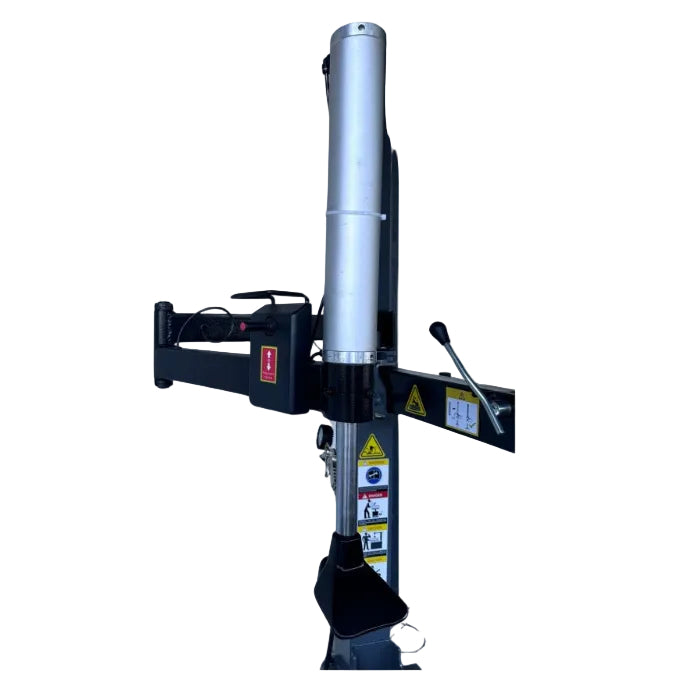

DOUBLE LOW-PROFILE PRESSER - controlled by powerful pneumatic cylinders and equipped with a 360-degree rotating head

Assembly table with a grip of up to 24"
"SPACE SAVE" type - the machine can be installed right next to the wall, thus saving workshop space.
Rotation speed is regulated by pressing the pedal
Aluminum alloy control pedal construction

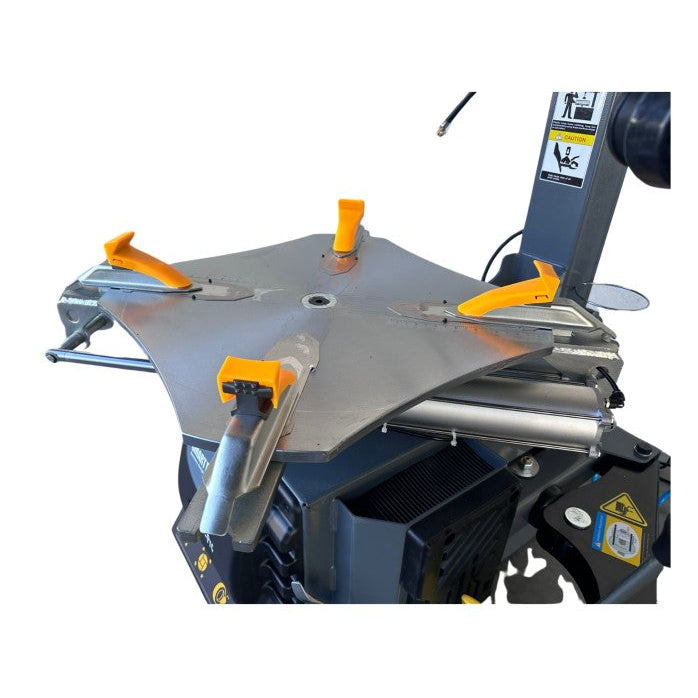

"X TYPE" profiled assembly table
15 mm thick assembly table

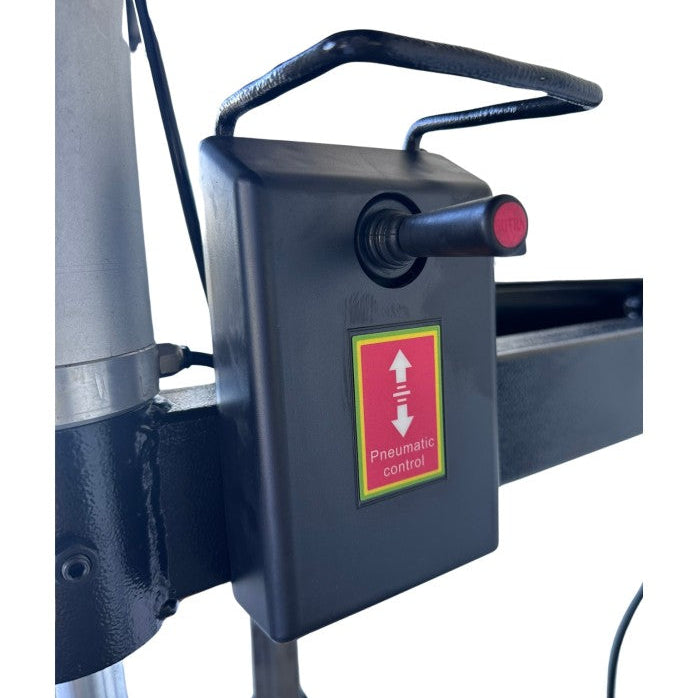

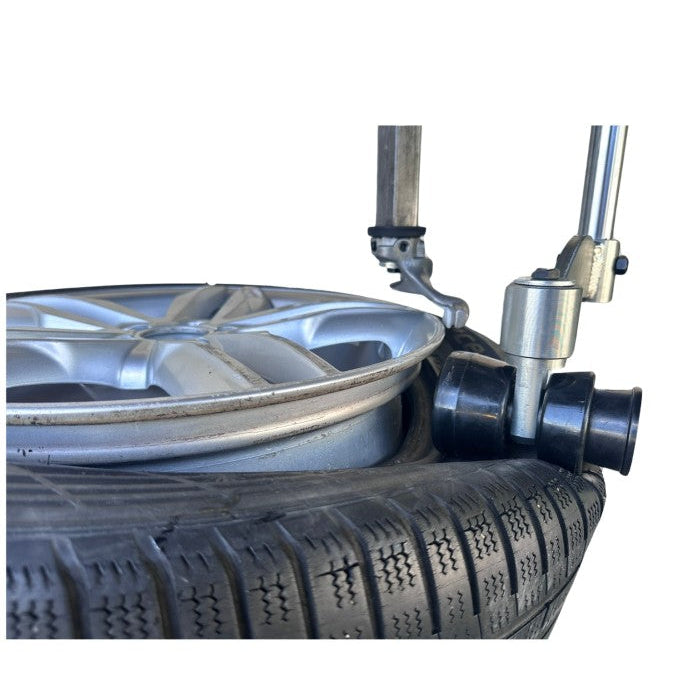

"HELP ARM" Integrated pneumatic clamping device for low-profile tires

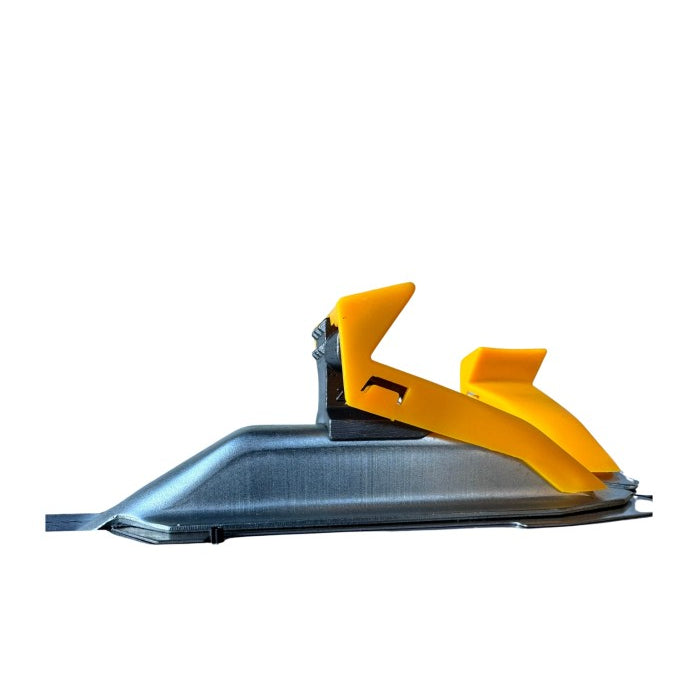

"ALU PROTECT" set of plastic protectors for light alloy rims
Possibility of installing an impact inflation device
Possibility of installing motorcycle adapters.

Technical parameters:

Electric motor power 0.75 kW
Power supply 230V / 1 phase
Maximum wheel diameter – 41" (1040 mm)
Maximum wheel width – 14" (355 mm)
External grip from 10" to 21"
Internal grip from 12" to 24"

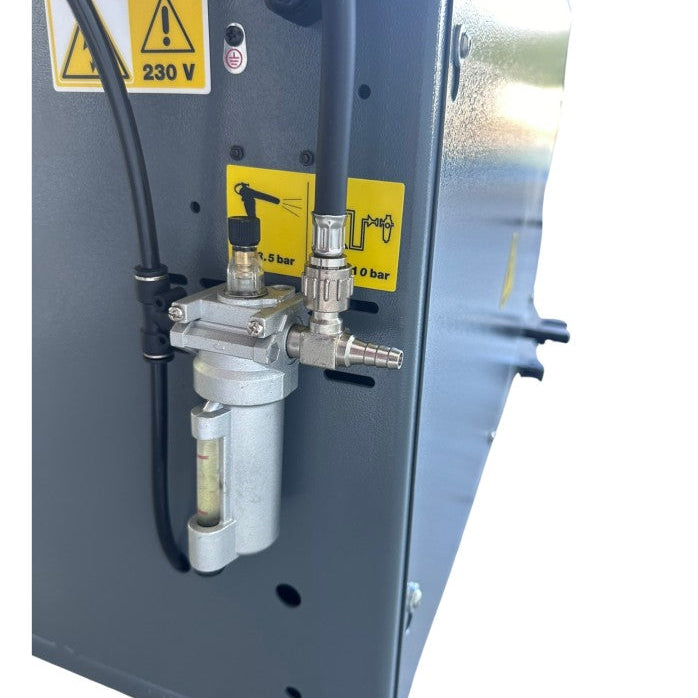

Compressed air supply 8-10 BAR

Overall dimensions:

Width – ~1300mm;
Depth – ~1300 mm;
Height – 1980mm;

Package dimensions:

Width – 900mm
Depth – 1200mm
Height – 1100mm
Weight – 230 kg

Package:

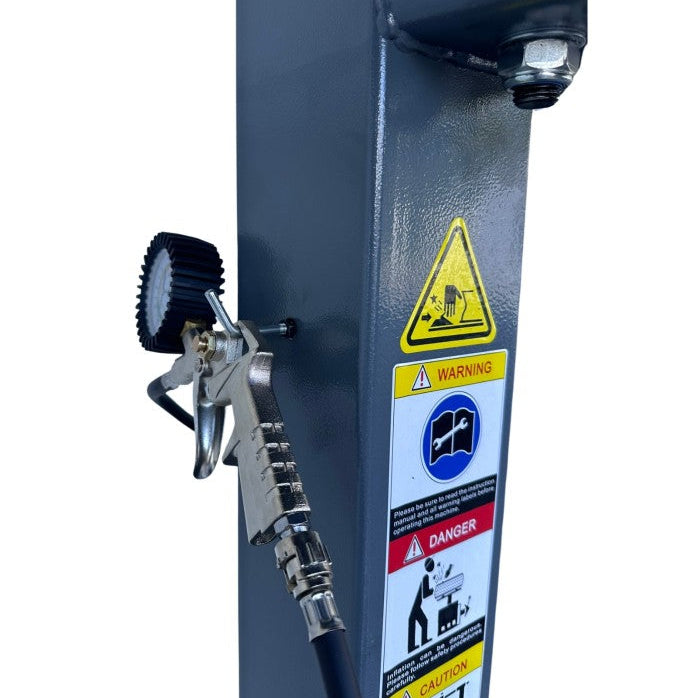

Tire inflation pressure gauge – 1 pc;
Mounting – 1 pc;
Gripper guards – 1 set

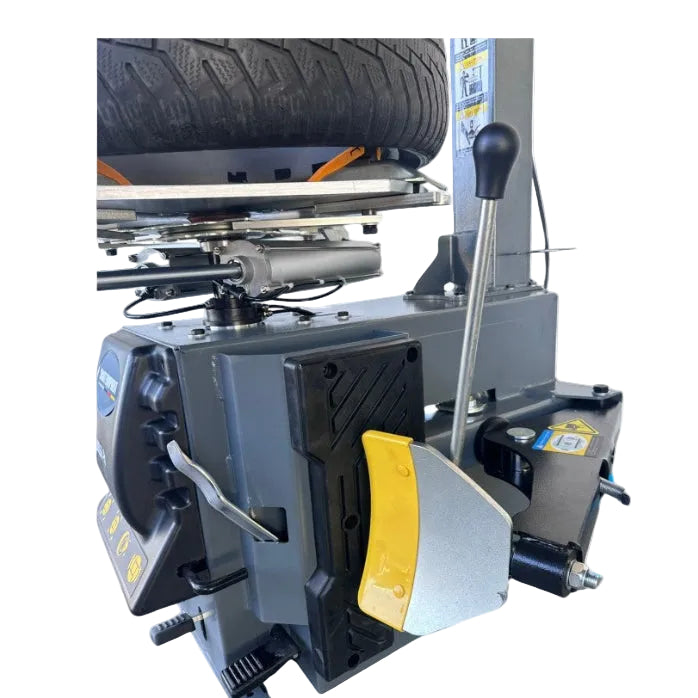

Tire bead breaker guard – 1 pc
Mounting head guards – 3 pcs
Roller for mounting head – 1 pc

Warranty period – 24 months.
