SATRA S-90293 Ball Joint Removal Installation Tool Set (Mercedes-Benz)

SATRA S-90293 Ball Joint Removal Installation Tool Set (Mercedes-Benz)

€40,00
€40,00
Sale Sold out
Taxes included.
The SATRA S-90293 is a professional, specialized C-clamp type tool kit engineered for the quick, safe, and efficient removal and installation of press-fit ball joints. Specifically tailored for Mercedes-Benz vehicles, this heavy-duty set allows mechanics to service suspension ball joints directly on the vehicle without removing the entire control arm, saving massive amounts of labor time.

Key Features
  • On-Vehicle Servicing: Eliminates the need to dismantle the steering knuckle or control arm, reducing service time.
  • Heavy-Duty C-Clamp Frame: Forged from premium steel to withstand the immense force required to press out stubborn or rusted ball joints.
  • Vehicle-Specific Precision: Engineered specifically to match the geometry and press-points of Mercedes-Benz suspension systems.
  • High-Grade Pressure Screw: Built with fine-threaded, heat-treated steel for smooth operation and maximum mechanical advantage.
  • Molded Storage Case: Packed in a heavy-duty blow-molded case for easy component identification, transport, and protection.
Technical Specifications
  • Brand: SATRA
  • Model Part Number: S-90293 (Cross-reference: S-5JPP)
  • Pressure Spindle/Screw: M28 × 3.5 mm (Total length: 196.5 mm)
  • Drive Size: 24 mm External Hex
  • Material: Heavy-duty, drop-forged industrial steel
Vehicle Compatibility
This kit is purpose-built for the assembly and disassembly of suspension ball joints on the following Mercedes-Benz chassis:
  • S-Class (W220): Production years 1998 – 2005
  • E-Class (W211): Production years 2002 – 2009
  • SL-Class (R230): Production years 2001 – 2011

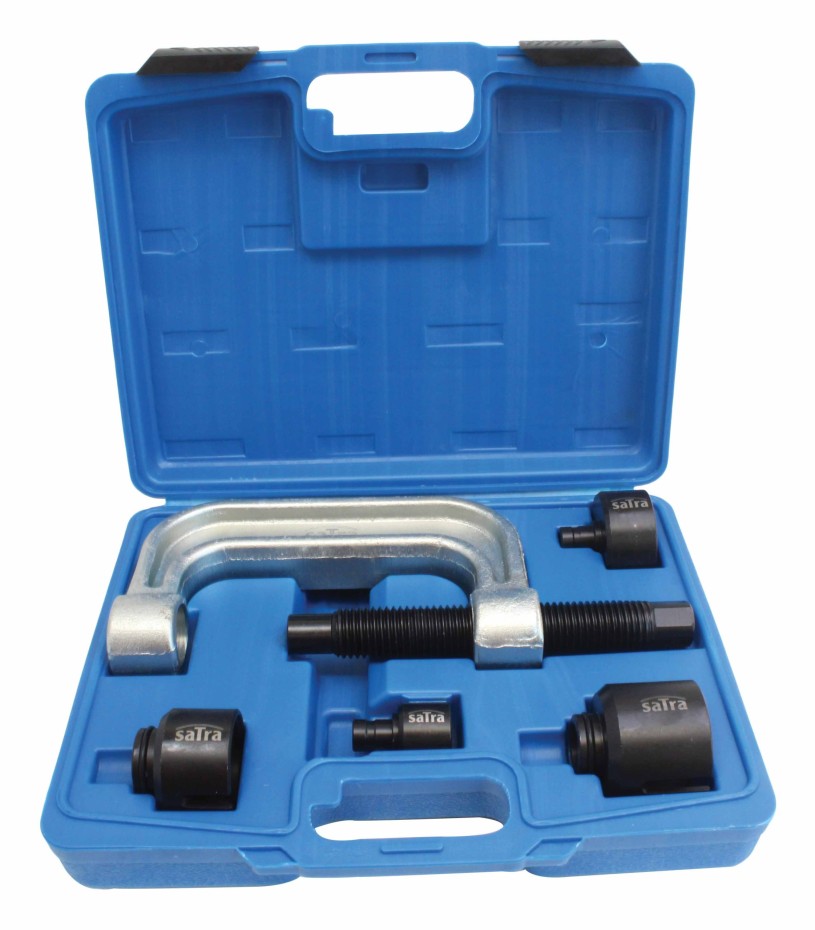

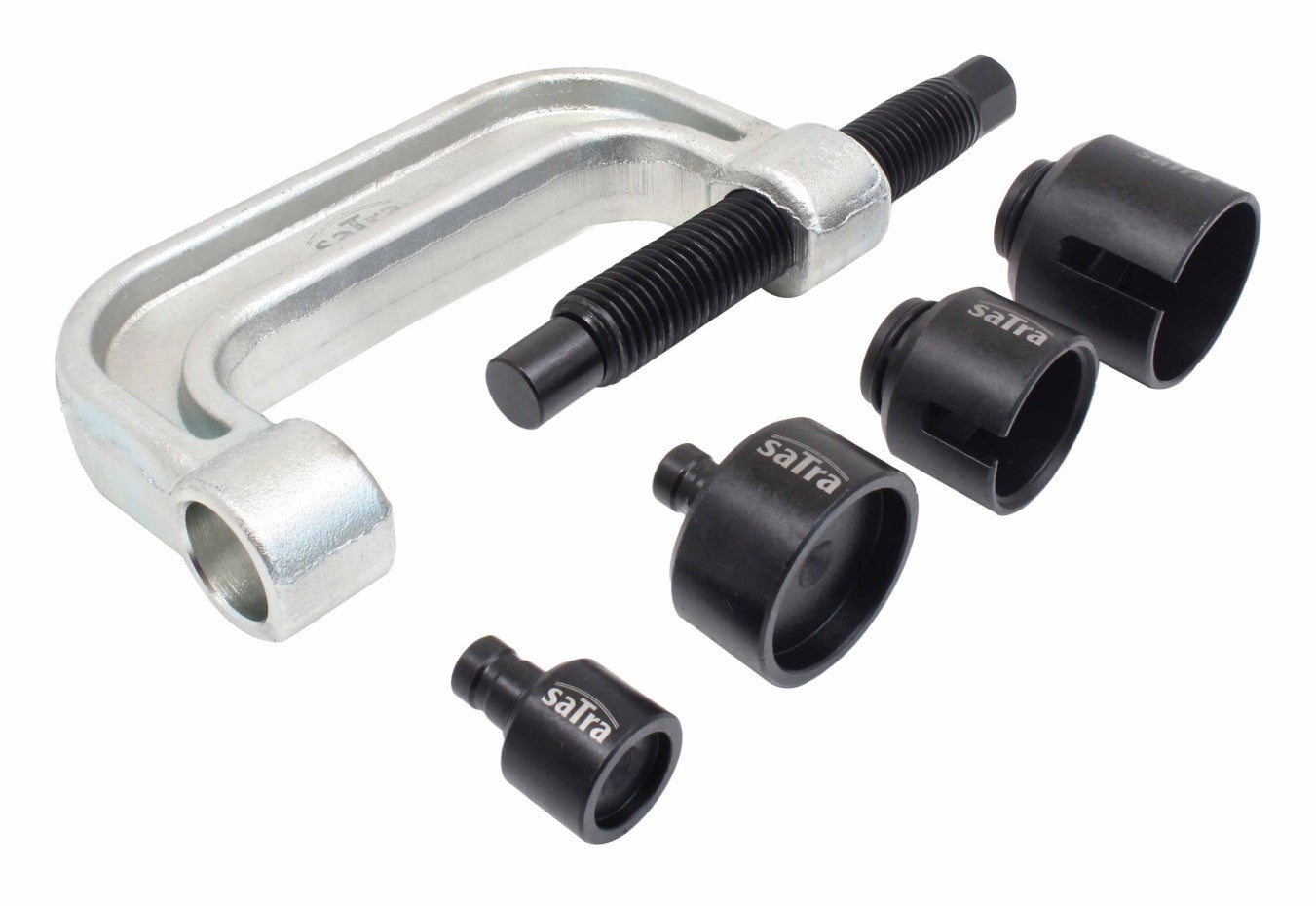

Package Includes (Component Breakdown)
  • 1 x Heavy-duty C-clamp frame
  • 1 x M28 × 3.5 mm Forced pressure spindle
  • 1 x Internal centering ball press element (Length: 49.0 mm / OD: 22.1 mm)
  • 1 x Small press sleeve (Length: 49.9 mm / OD: 33.1 mm / ID: 24.1 mm)
  • 1 x Large press sleeve (Length: 54.0 mm / OD: 57.3 mm)
