Mobile electro-hydraulic scissor lift with ELECTROMAGNETIC LOCKS
INTEGRATED EASYLIFT LIFTING SYSTEM
ELECTROMAGNETIC CONTROL OF SAFETY LOCKS
230V ELECTRICAL SUPPLY
SMART EQUIPMENT QUALITY
The lift is ideally suited for work at a wheel repair workstation, but you can easily and conveniently perform other tasks with it - express service services (quick oil, brake pads or small suspension elements replacement/repair), and the advantages of the lift will also be appreciated by auto electricians or body shop masters.
Since the lift comes standard with a set of specially designed wheels - you can use it in almost any workshop area - this way you will save space and have an additional and efficient workplace.

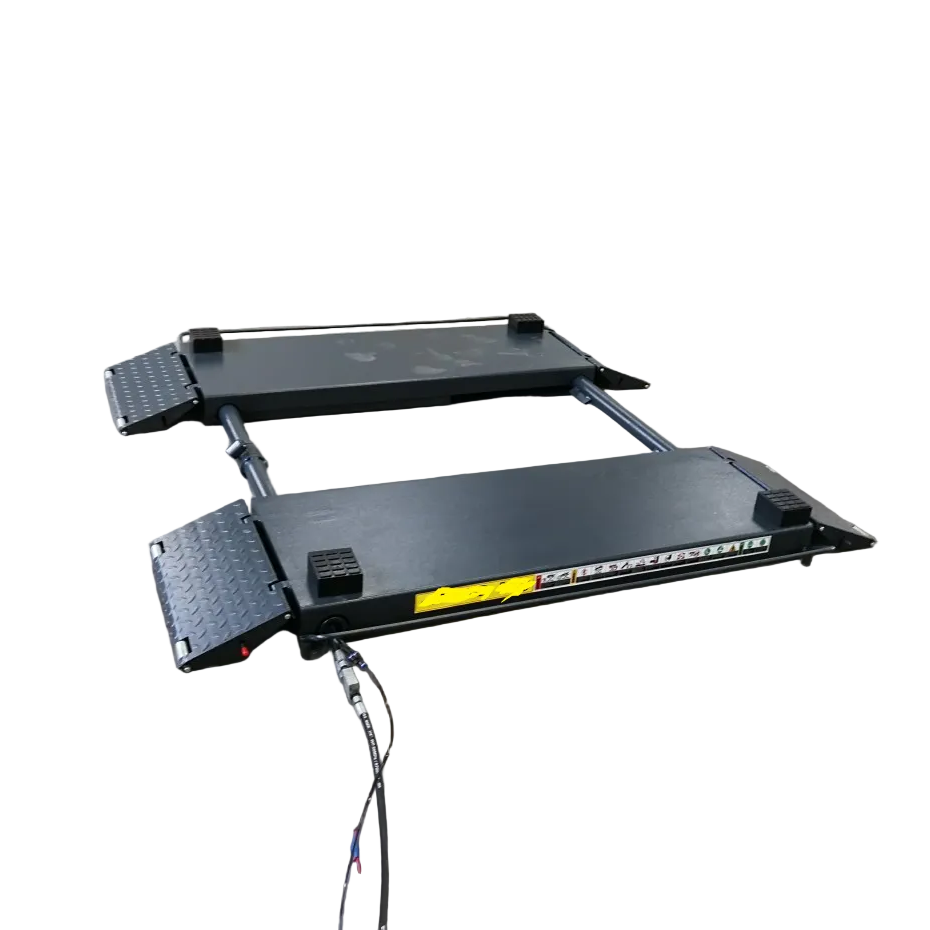

Mobile electro-hydraulic scissor lift
Technical specifications:
Maximum lifting capacity – 3500 kg;
Lifting height – 1000 mm;
Minimum height – 110 mm;
Hydraulic pump power – 1.5 kW;
Platform length – from 1400 to 1900 mm;
The total width of the platforms is 1760 mm;
The distance between the platforms is 700 mm;
Power supply – 230 V
Number of cylinders – 2;
The principle of operation of the cylinders is “master-slave”;
Operating principle – electro-hydraulic;
Height locks – ELECTROMAGNETIC;
24 V control voltage;
Mobile control panel;
CE certificate of conformity;
High-quality electric motor with aluminum housing;
Weight – 550 kg;
Installation conditions:
Power supply – 230 V, 50 Hz. . Separate automatic fuse min. 16A (according to current electrical safety requirements).
Usage surface – flat, solid foundation capable of withstanding a load of 3000 kg;
