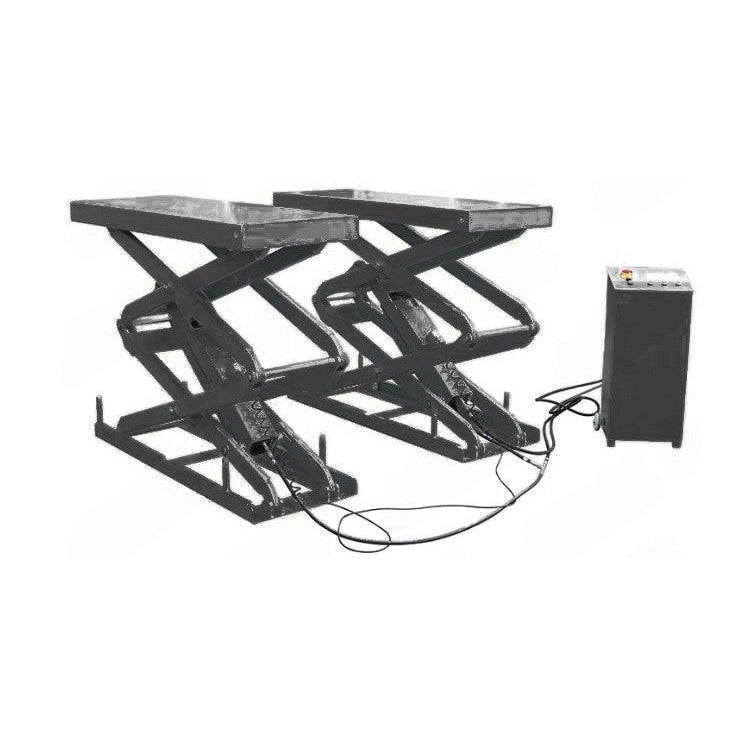

Electro-hydraulic scissor lift 3500kg – deep version  JH-FW3500

The scissor lift is designed for routine repairs of passenger cars. The lift design is adapted for installation in a pit. After installation, the surface of the lift is completely flush with the ground surface. Unlike two-column lifts, scissor lifts provide the workplace with much greater ergonomics and take up significantly less space.

Electro-hydraulic scissor lift 3500kg – deep version  JH-FW3500

The scissor lift is designed for routine repairs of passenger cars. The lift design is adapted for installation in a pit. After installation, the surface of the lift is completely flush with the ground surface. Unlike two-column lifts, scissor lifts provide the workplace with much greater ergonomics and take up significantly less space.

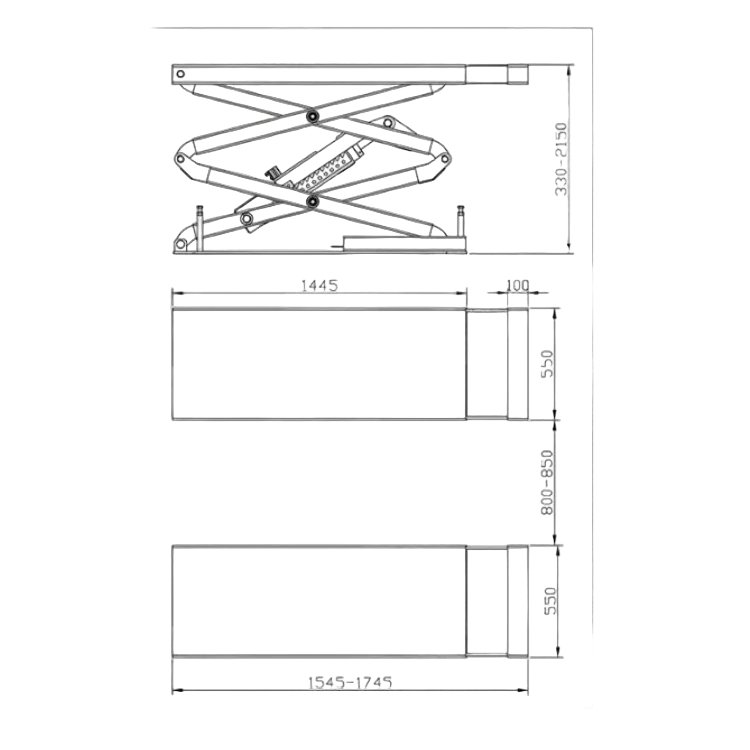

Technical specifications:

• Maximum lifting capacity – 3500 kg;
• Lifting height –2150 mm;
• Minimum height – 330 mm;
• Hydraulic pump power – 2.2 kW;
• Platform length – from 1545 to 1745 mm;
• Platform width – 550 mm;
• Working pressure - 6-8 bar
• Power supply – 400 V, 50 Hz
• Number of cylinders – 4;
• The principle of operation of the cylinders is “master-slave”;
• Operating principle – electro-hydraulic;
• Height adjusters – pneumatic;
• 24 V control voltage;
• Stationary control panel;
• CE certificate of conformity;
• Warning signals in the final phase of descent

Warranty period – 12 months.
