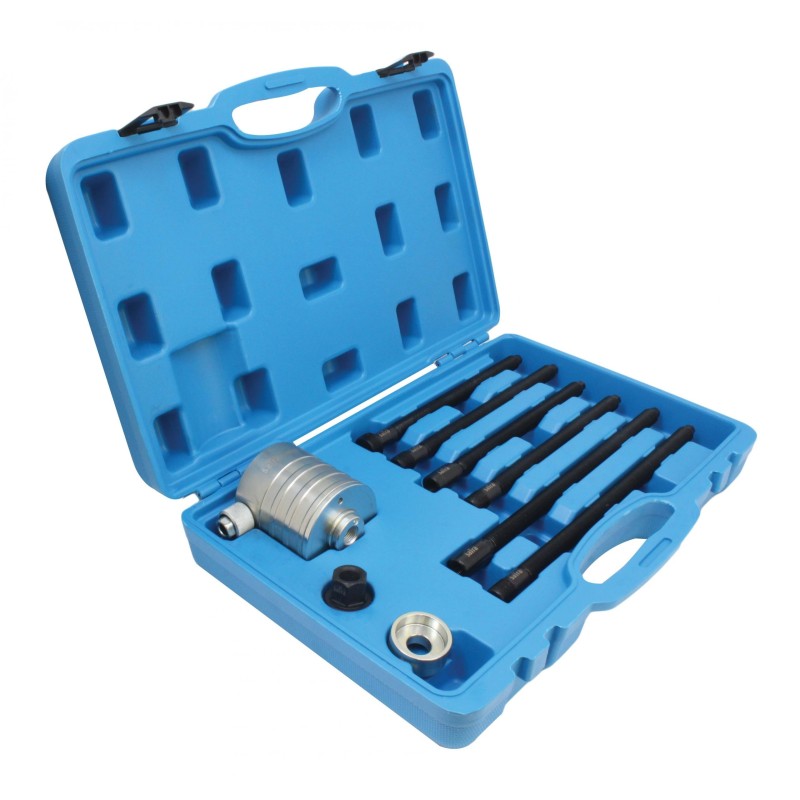

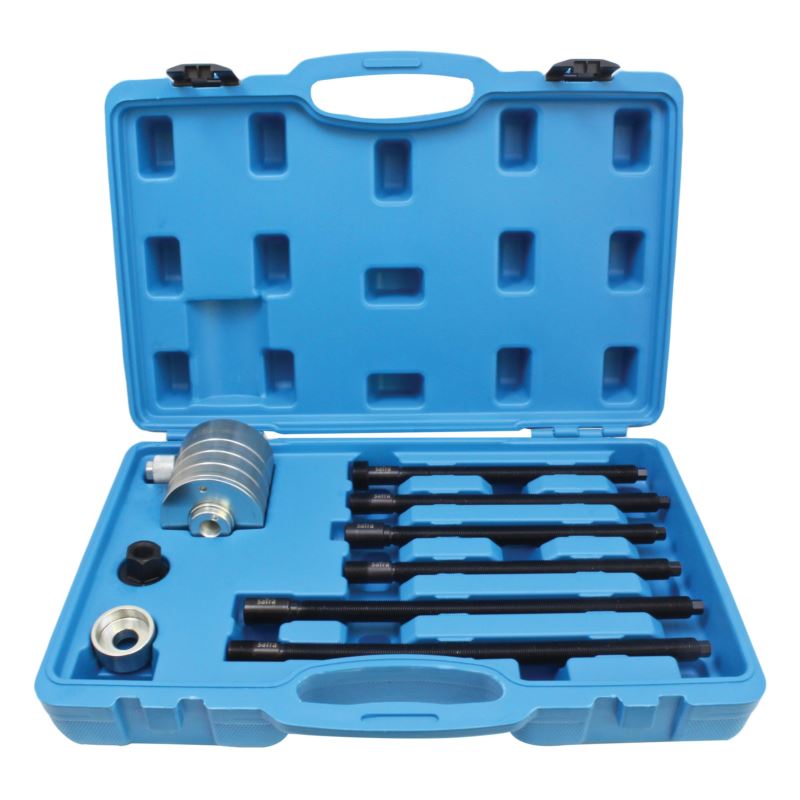

HYDRAULIC INJECTOR PULLER WITH ADAPTERS

Specialized SATRA puller adapted for controlled extraction of seized DIESEL injectors using a pin and a hydraulic actuator with a very high power of 17 tons.

This set is compatible with a hydraulic pump with a standard input and with the ASTA A-CRI8 set using the appropriate bridge for extracting injectors.

Working pressure: max. 700 bar

Hydraulic piston diameter: 30 mm

Hydraulic piston stroke: 16 mm

Hydraulic cylinder diameter: 78 mm

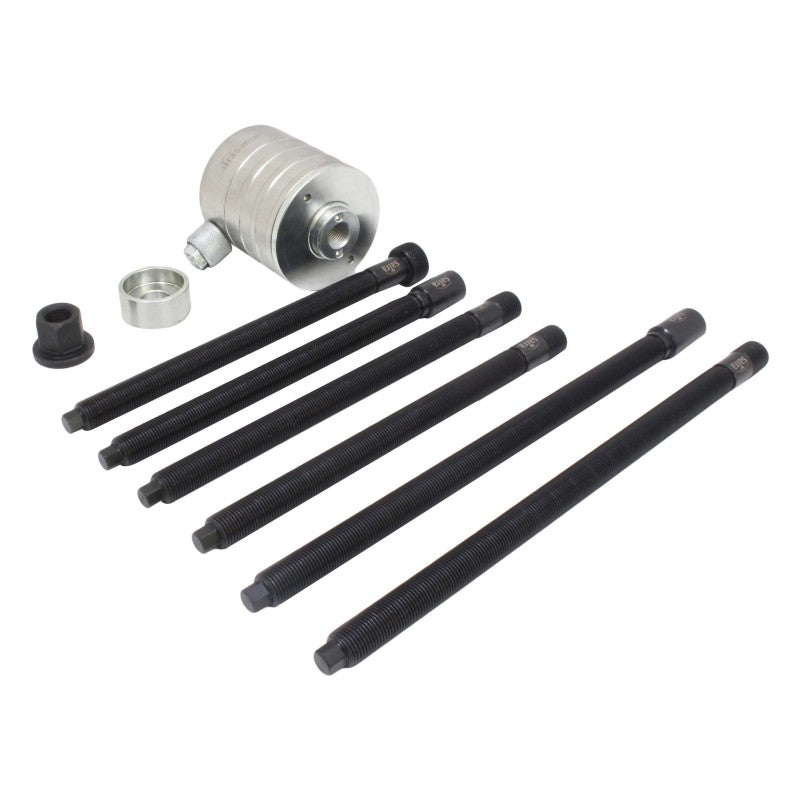

Set:

• Hydraulic cylinder internal thread M16 x 1.5 and coupling nut M21 x 1.25
• Spacer ring
• Puller spindle nut M16 x 1.5
• Puller spoindle M14 x 1.5 (240 mm) external thread.
• Puller spindle M14 x 1.5 (315 mm) external thread
• Puller spindle M17 x 1.0 (240 mm) internal thread
• Puller spindle M17 x 1.0 (315 mm) internal thread.
• Puller spindle M18 x 1.5 (250 mm) internal thread.
• Puller spindle M25 x 1.0 (240 mm) internal thread.
