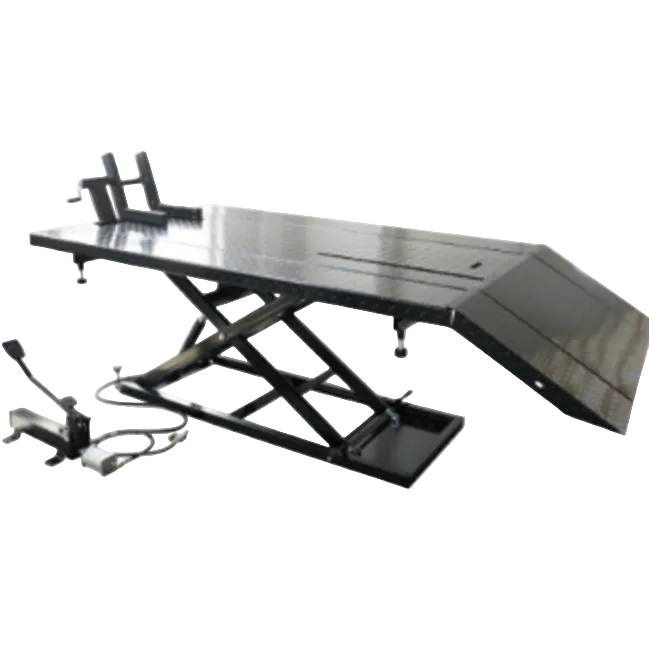

EVO-680S pneumatic hydraulic lift with wide platform

Pneumohydraulic motorcycle lift "EVOLUTION EVO-680S" for motorcycles weighing up to 680 kg. Wide platform with side extensions, ramps and foot control.

The EVOLUTION EVO-680S is a robust, professional-grade pneumatic-hydraulic motorcycle lift. This model features a wide platform with side extensions, making it perfect for both standard and wider motorcycles, ATVs, or other vehicles.

The lift is operated by a foot pedal and uses air pressure (0.75-0.85 Mpa), ensuring smooth and fast lifting. With a maximum height of 810 mm, the EVO-680S allows for comfortable standing work, while the minimum position of 185 mm facilitates vehicle entry.

Technical characteristics:

• Model: EVO-680S
• Type: pneumatic-hydraulic
• Lifting capacity: 680 kg (1500 lbs)
• Minimum height: 185 mm
• Maximum height: 810 mm

• Platform size:

• Without extensions: 1950 × 710 mm
• With extensions: 1950 × 1220 mm
• Access ramp:
• Without extensions: 580 × 710 mm
• With extensions: 580 × 1220 mm
• Required air pressure: 0.75–0.85 Mpa

This model is perfect for workshops that perform frequent maintenance and repair work on various types of motorcycles or ATVs. The side extensions make the platform versatile, and the pneumatic-hydraulic system is reliable and durable.
