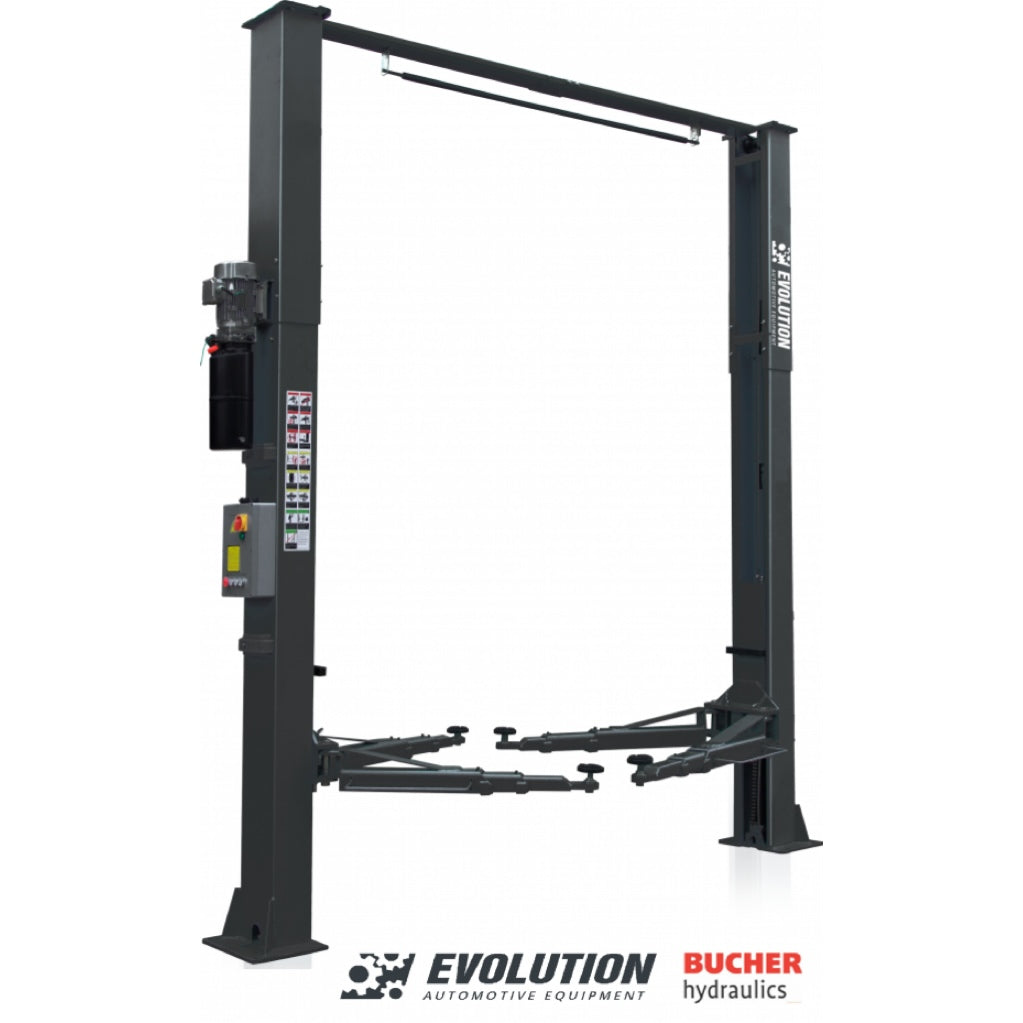

EVO-45DEH 2-post lift 4500kg EVOLUTION/230/400V

2-post lift 4500kg,

Front lifting supports – 3-stage - 721-1511 mm,

Rear lifting supports - 3-stage - 721-1511 mm,

Lift height is ADJUSTABLE – 3720 or 4220 mm,

Height locks - Electromagnetic

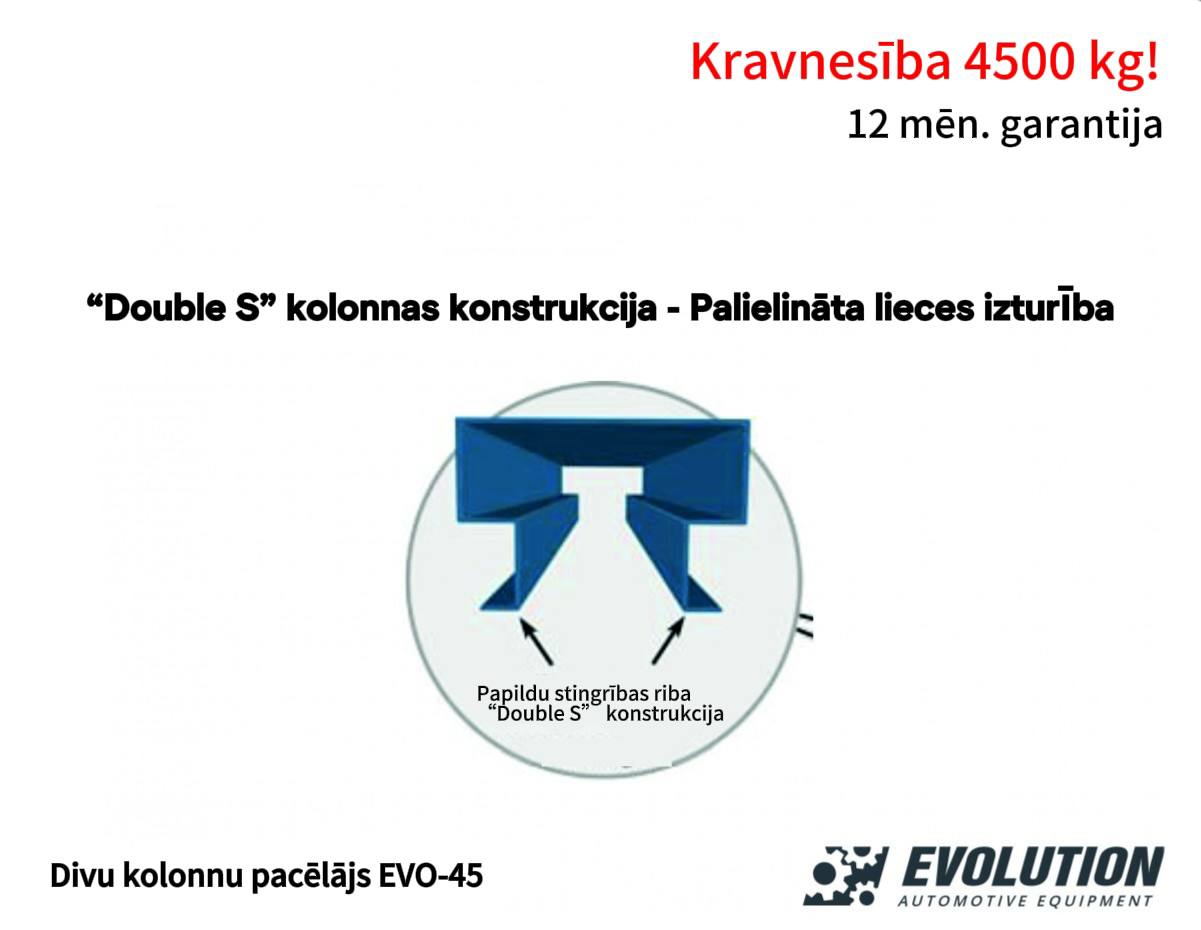

EVOLUTION EVO-45DEH - High quality lift suitable for every workshop with "Double S" column construction + 3-stage extended (up to 1511mm) lifting supports at the front and rear! WITH AUTOMATIC HEIGHT FIXERS

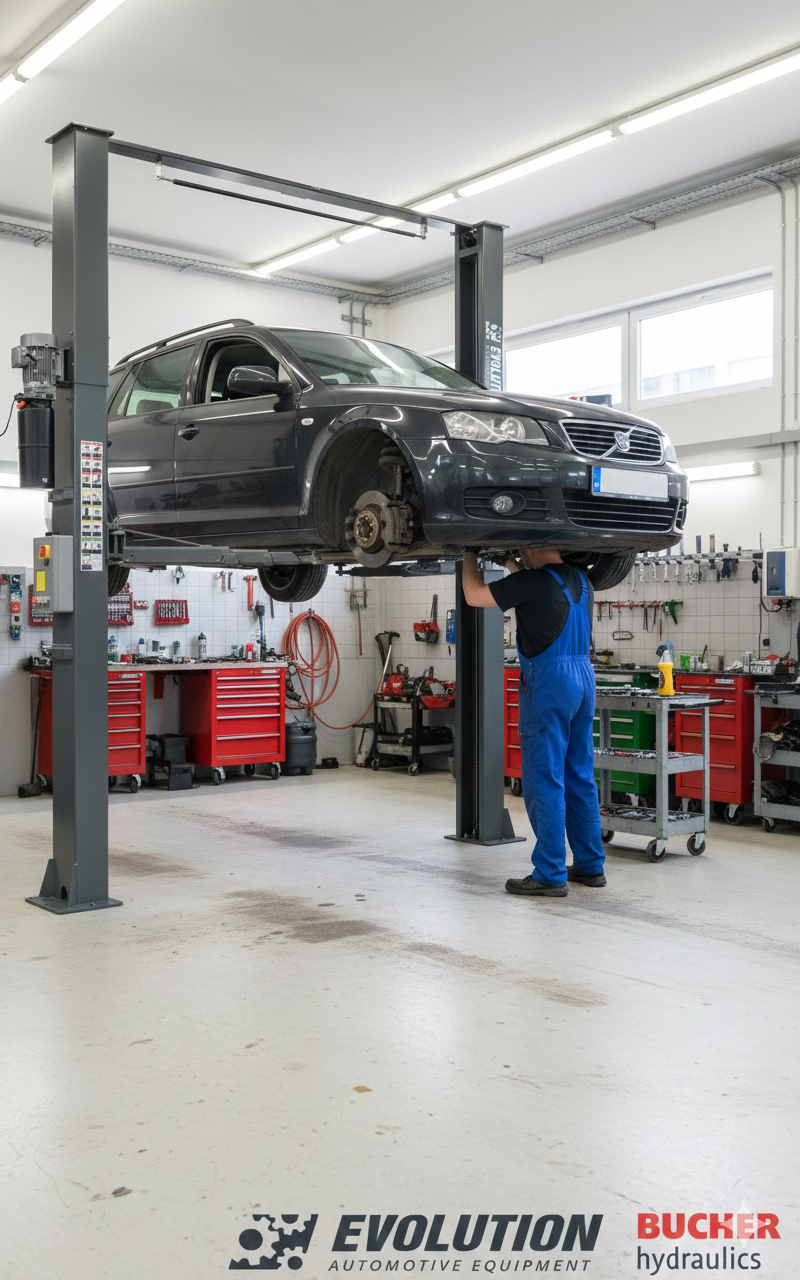

The lift is designed for routine repairs of light and light commercial vehicles (minibuses, SUVs). With a new type of lifting support carriage design and 3-stage lifting supports, the lift provides wide and convenient vehicle docking options, the highest-class electro-hydraulic stop with a plastic hydraulic oil tank provides the hydraulic system with durability (prevention of corrosion compared to a metal hydraulic oil tank), and smooth and quiet operation.

Technical specifications:

Maximum lifting capacity – 4500 kg;

Operating principle – electro-hydraulic;

Synchronization – hydraulic-cable;

Lifting height – 1850 mm;

Minimum height – 92 mm;

Front lifting supports – 3-stage; 721-1511 mm

Rear lift supports - 3-stage; 721-1511 mm

Automatic locking of the lifting supports position;

Automatic height unlocking;

Hydraulic pump power – 2.2 kW;

Power supply - 230/400V

Total width of the lift – 3420 mm;

Lift height is ADJUSTABLE – 3720 or 4220 mm;

Internal fixation of the support position;

Height locks - Electromagnetic

CE certificate



Installation conditions:

Power supply – 400 V, 50 Hz. Connection cable 5x2.5 mm2. Separate automatic fuse min. 16A (according to current electrical safety requirements).

Power supply – 230 V, 50 Hz. Connection cable 3x2.5 mm2. Separate automatic fuse min. 16A (according to current electrical safety requirements).

Usage surface – flat, solid foundation withstanding a load of 4500 kg;

Surface tolerance: +/- 0.00 0;

Hydraulic oil – 10 Ltr;

Hydraulic oil class – HLP32;

For indoor use only;

Operating temperature - -10 to +40 0C;

Warranty period – 12 months.
