2-post lift 4000kg
3-stage lifting supports
Maximum lift height 3904mm
Height locks - electromagnetic

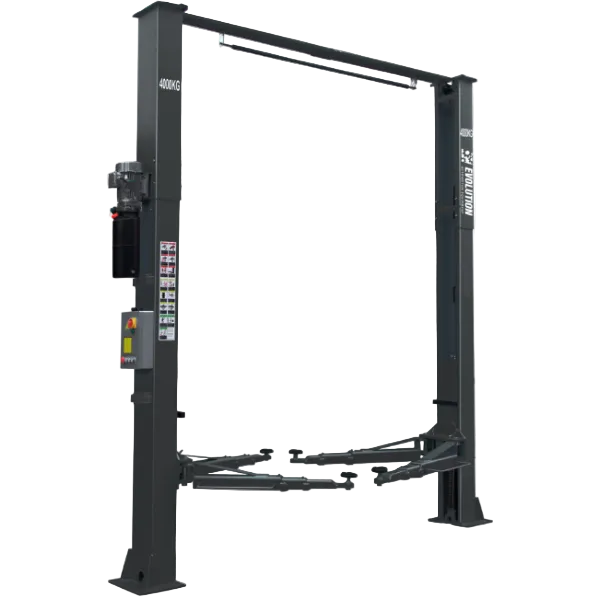

Professional two-post lift kit EVOLUTION AUTOMOTIVE EQUIPMENT EVO-40DEH
The lift is designed for routine repairs of light and light commercial vehicles. With a new type of lifting support carriage design and 3-stage lifting supports, the lift provides wide and convenient vehicle docking options, and the top-class BUCHER electro-hydraulic station with a plastic hydraulic oil tank provides the hydraulic system with durability (prevention of corrosion compared to a metal hydraulic oil tank), as well as smooth and quiet operation.
Electromagnetic height locks – a guarantee of reliability!
Advantages of the lift:

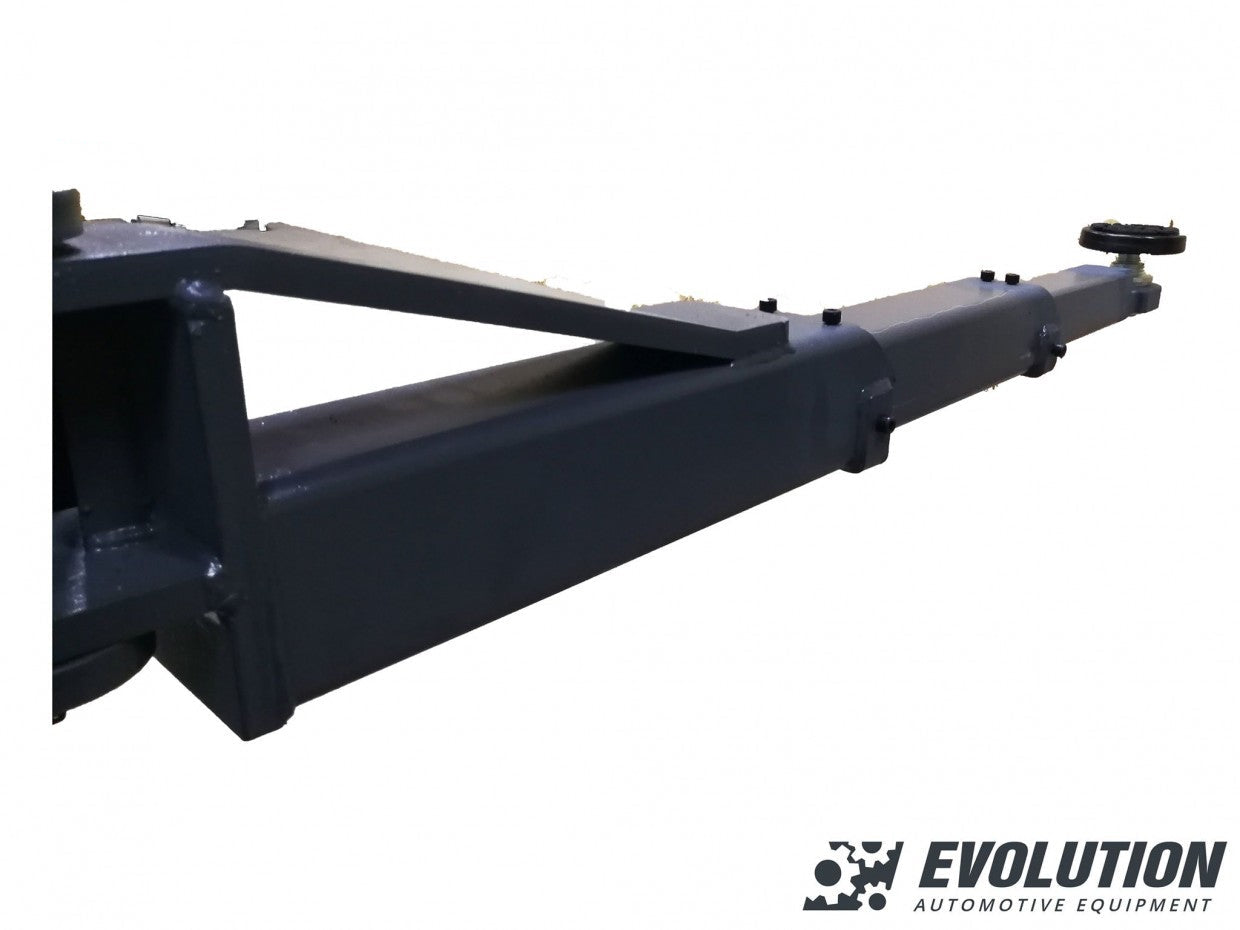

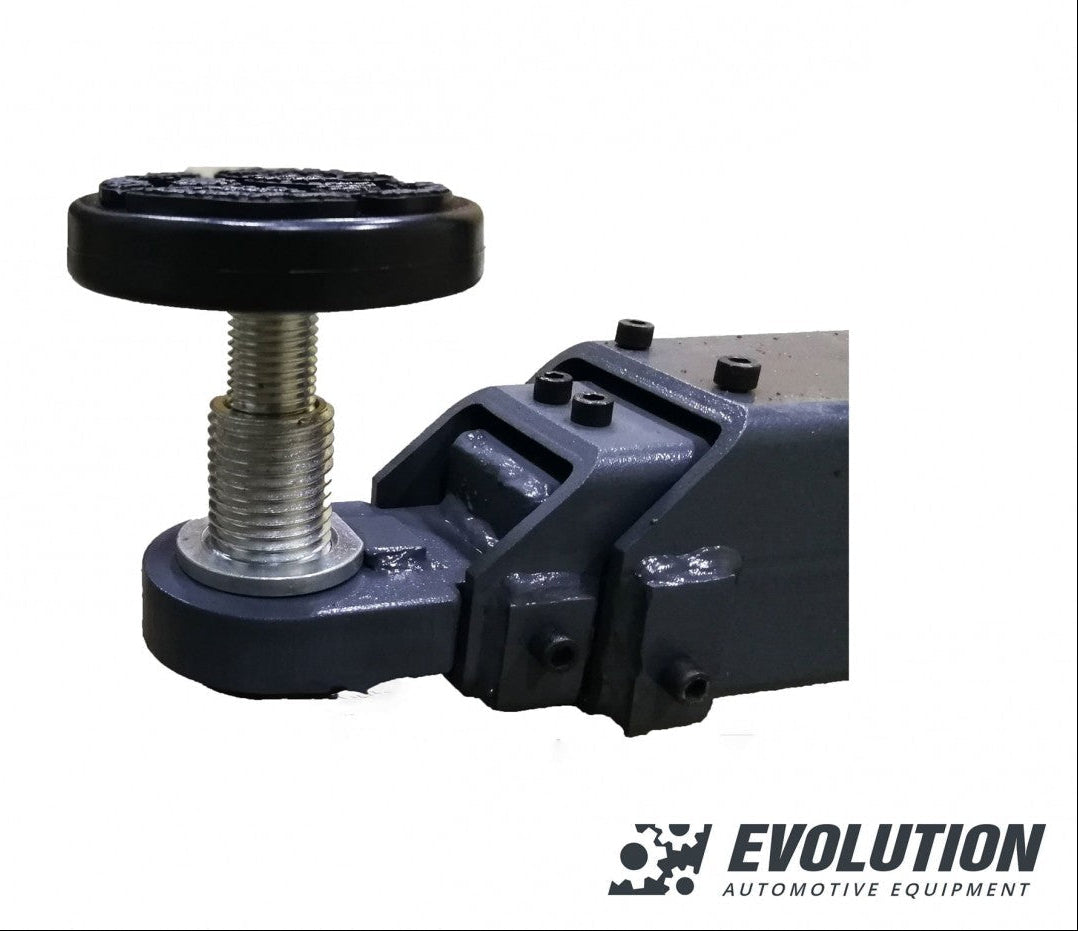

3-stage lifting supports;
Internal lifting support locks;
Reinforced construction lifting carriage;
BUCHER hydraulic unit;
Plastic hydraulic oil reservoir;
The color is resistant to dirt;
Technical specifications:
The lifting capacity of the lift is 4.0 tons;
Maximum lifting height – 1900 mm;
Maximum lift height – 3904 mm;
Minimum height of lifting supports – 110 mm;
Front lifting supports 628-902-1080 mm (first-second-third stage)
Rear lifting supports 793-1123-1500 mm (first-second-third stage)
External width of the lift – 3426 mm;
Electrohydraulic pump power – 2.2 kW
Power supply – 400 V, 3 phase.
Height locks – electromagnetic;
CE certificate;
Warranty period – 12 months
