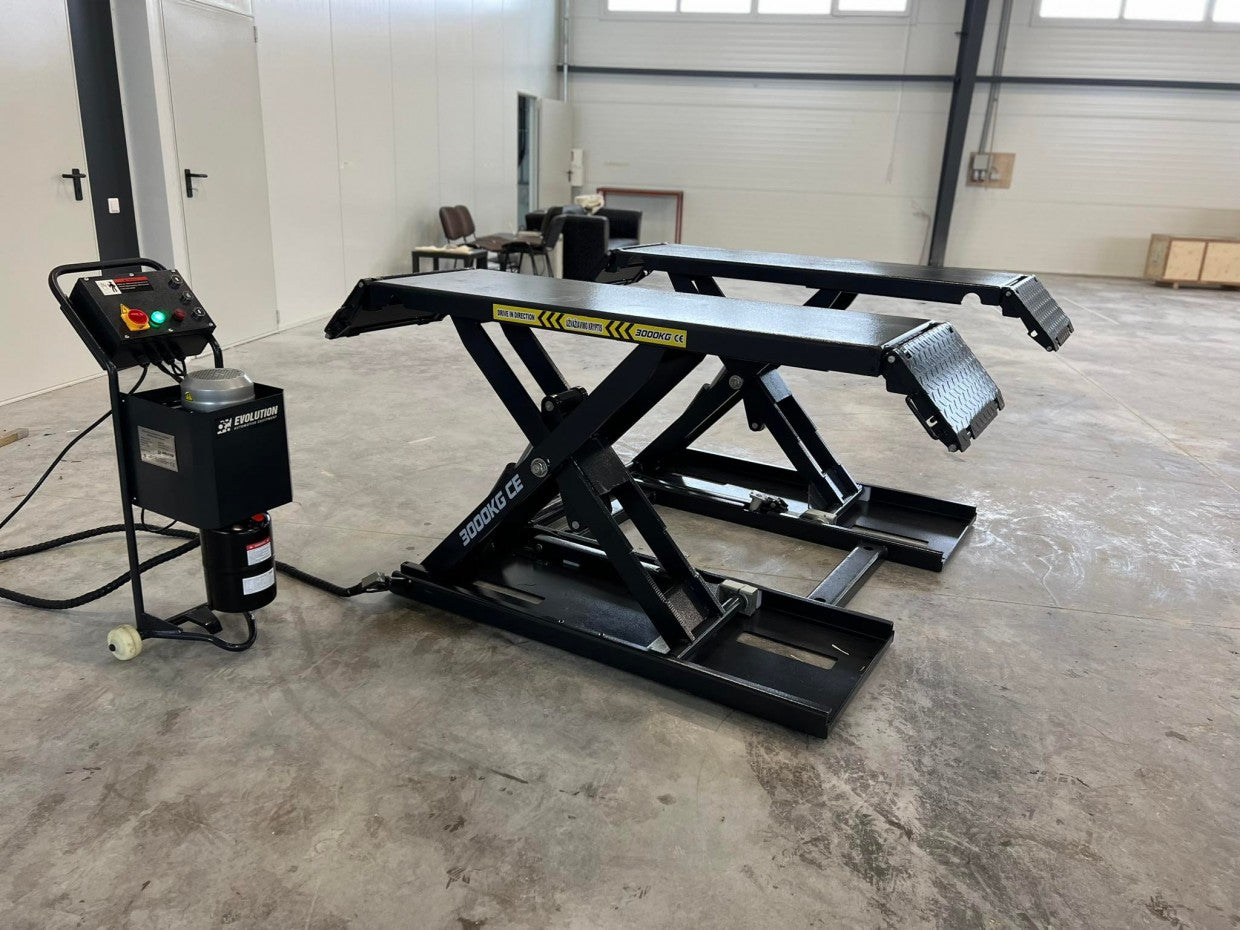

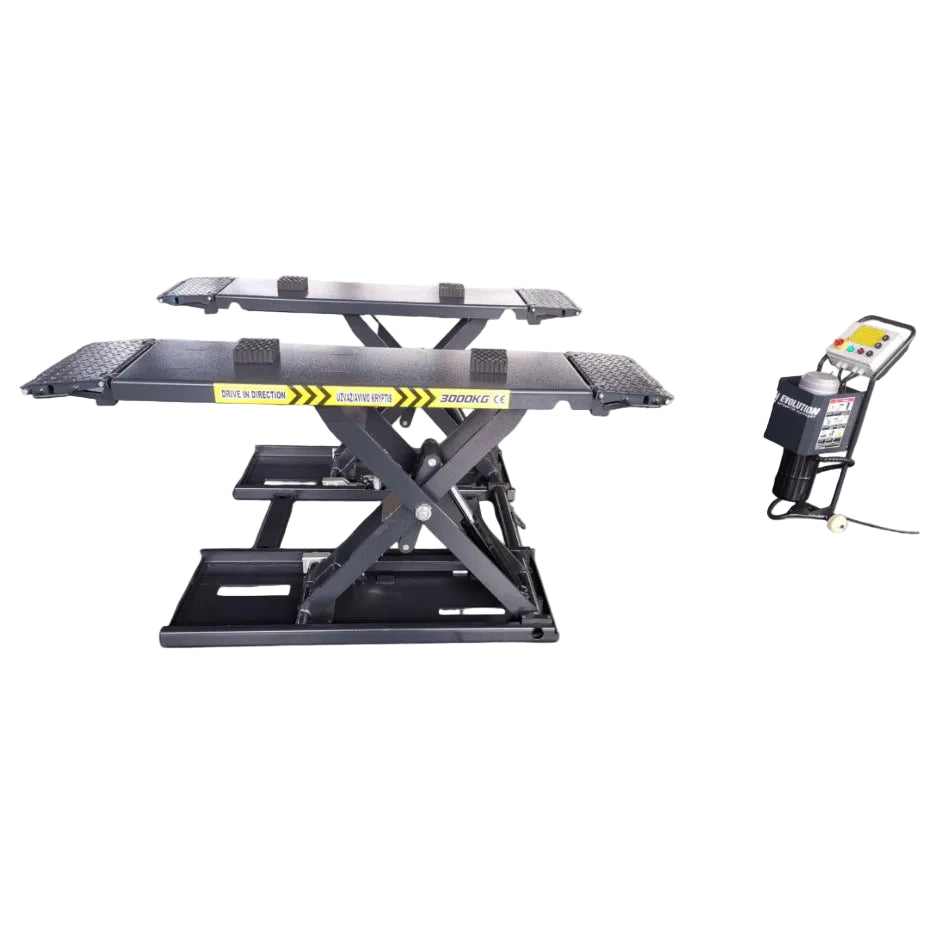

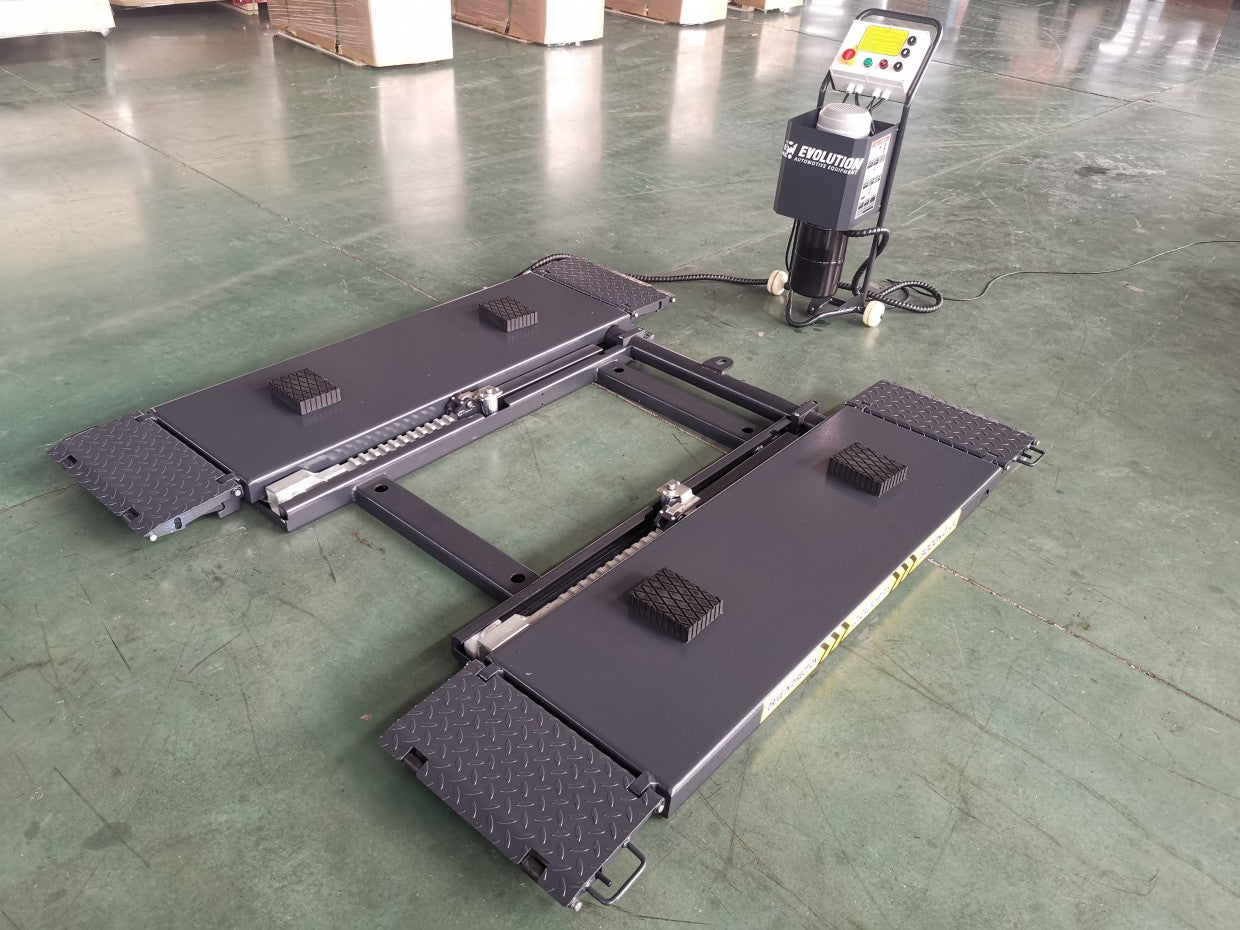

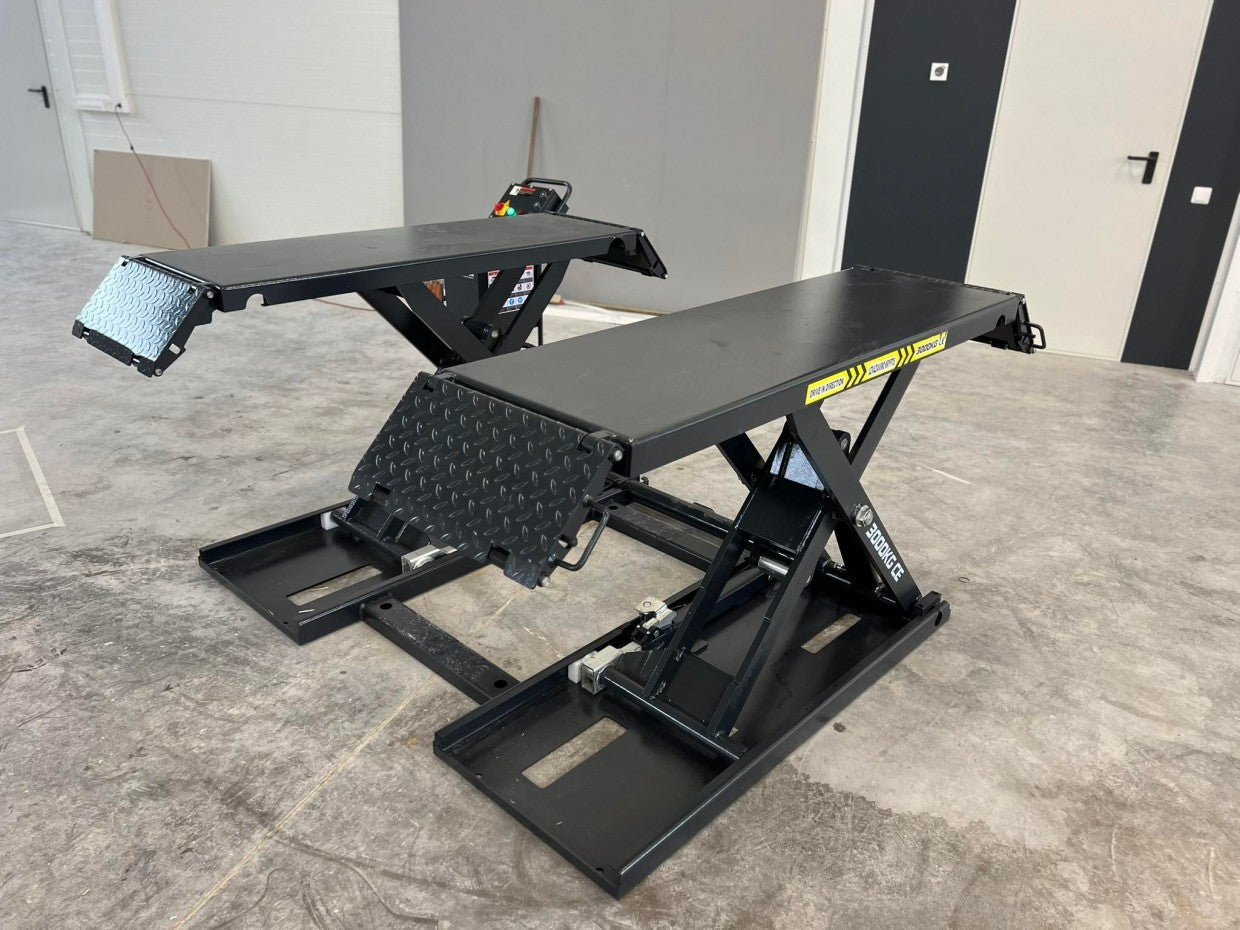

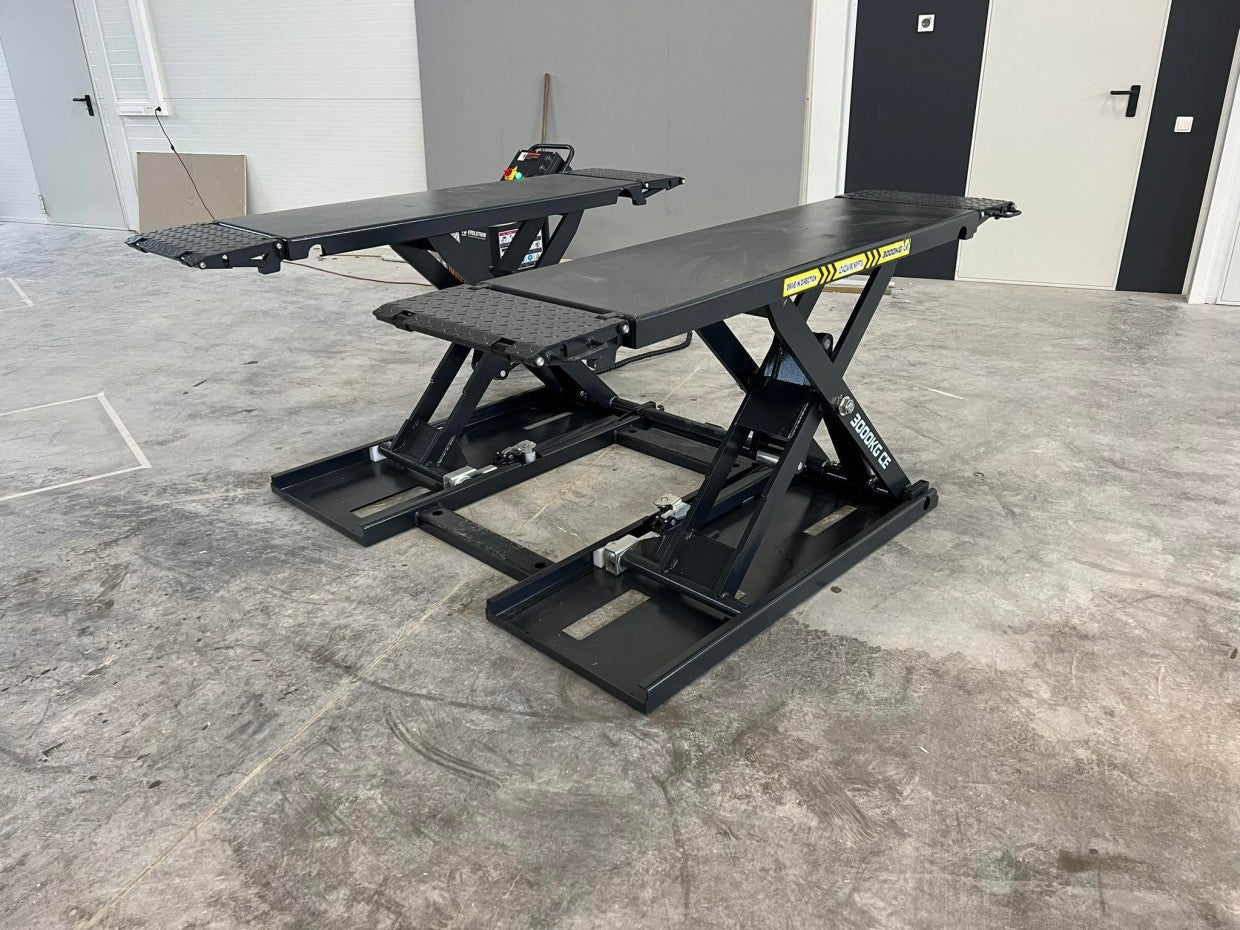

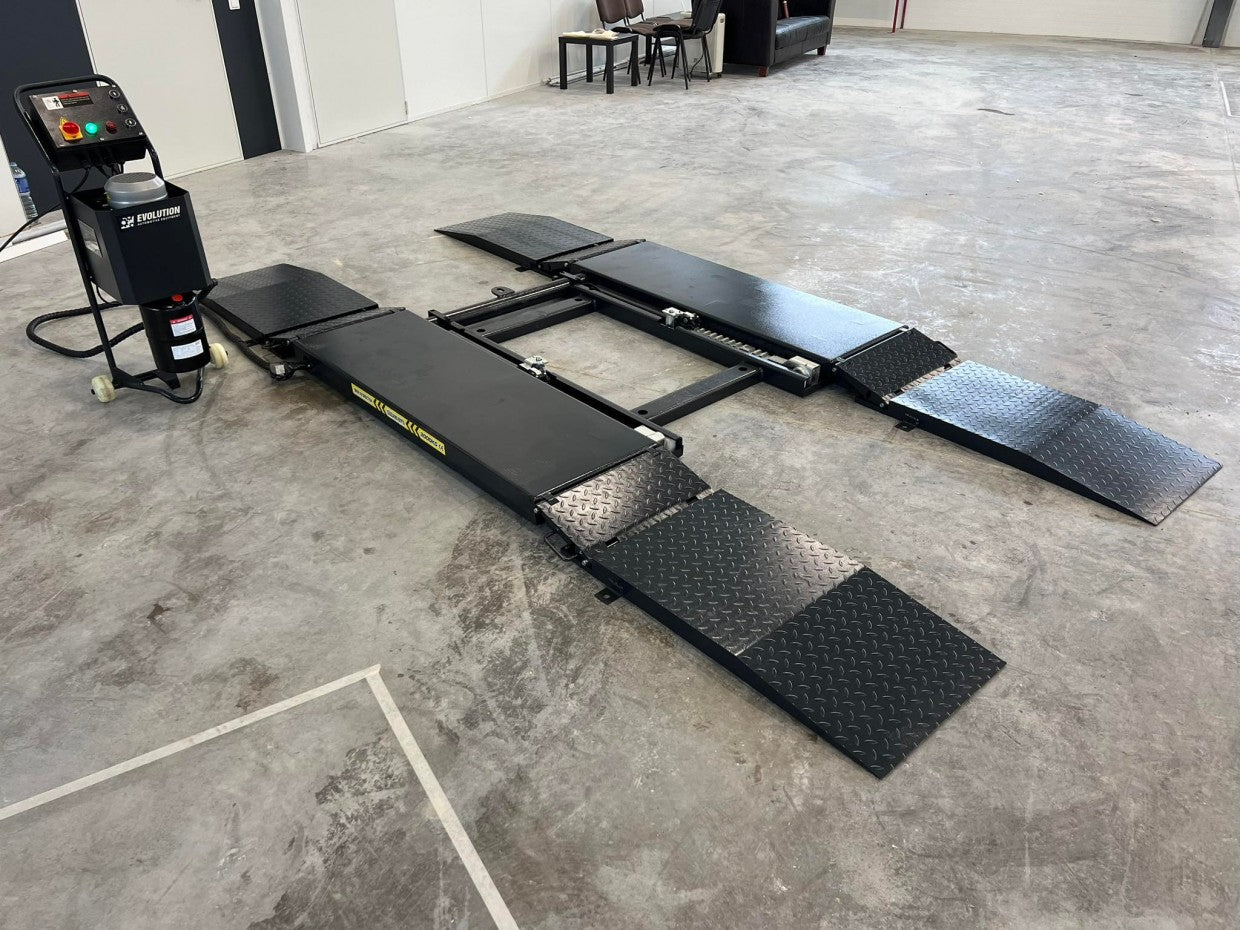

EVO-3000E Scissor Mobile Lift with Automatic Locking

The HD construction EVOLUTION EVO-3000E mobile scissor lift is designed for fast and safe car lifting in workshops. The reinforced 4S frame, EASY LIFT lifting system and electromagnetic safety locks ensure smooth operation up to 3000 kg of load. Thanks to the included castors, the lift is easy to move and can be used in different work areas, making it perfect for wheel repairs, express service, electrical or bodywork work. The 230V power supply allows the lift to be used without a three-phase input.

HD construction EVOLUTION AUTOMOTIVE EQUIPMENT mobile scissor lift
EVOLUTION EVO-3000E series lifts are designed for fast, safe and comfortable work! Reinforced construction, high-quality hydraulic and electrical components and high-quality assembly will allow you to use the lift for a long time
 The lift is ideally suited for work at a wheel repair workstation, but with it you can easily and conveniently perform other tasks - express service services (quick replacement/repair of oil, brake pads or small suspension elements), as well as the advantages of the lift will be appreciated by auto electricians or body shop masters.

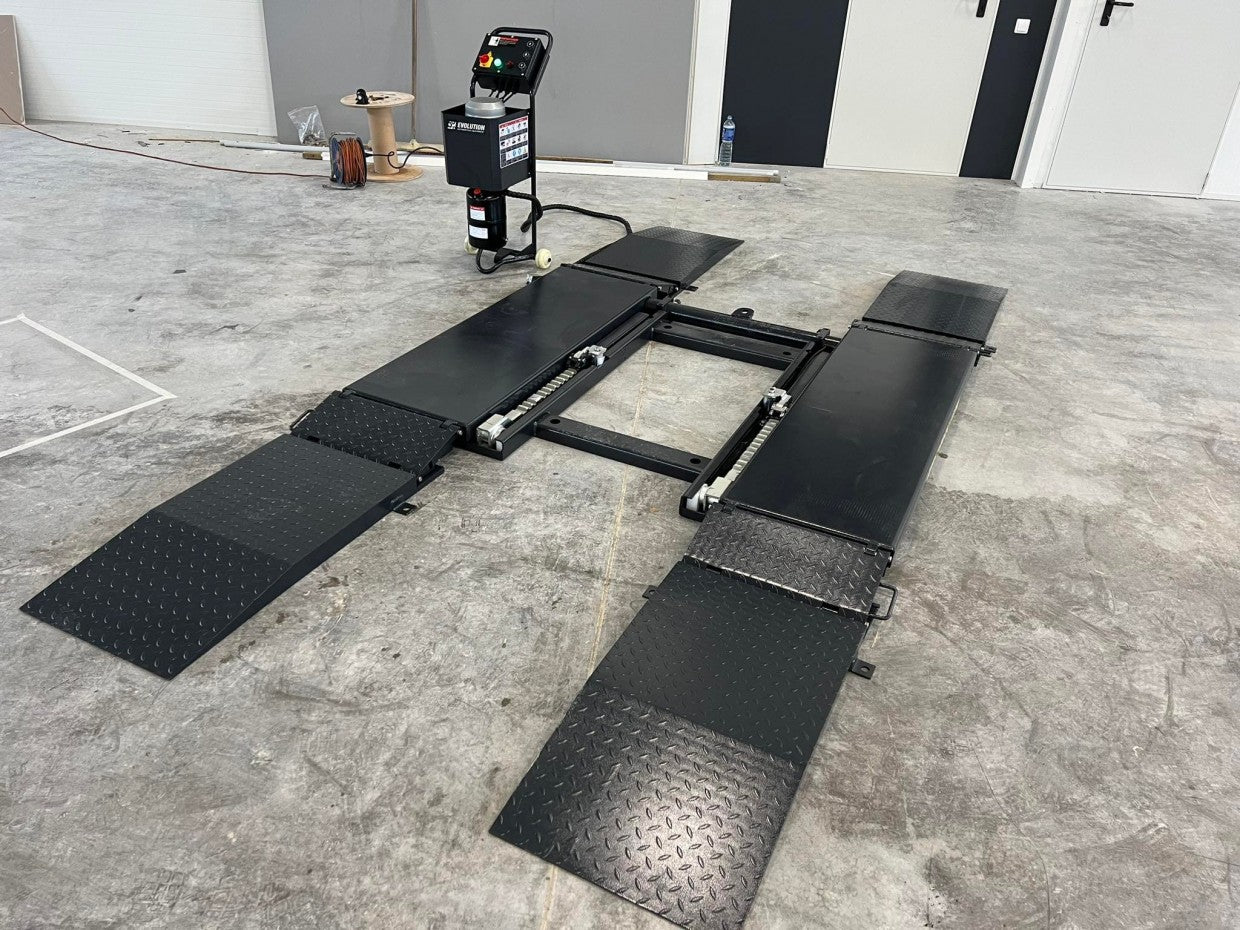

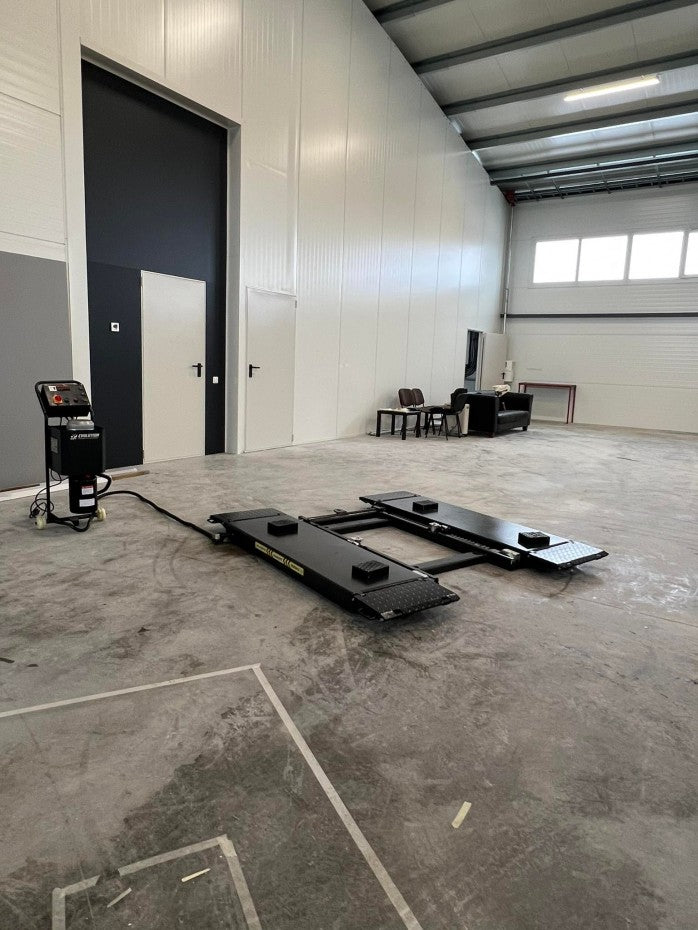

Since the lift comes standard with a set of specially designed wheels - you can use it in almost any workshop area - this will save space and have an additional and efficient workplace.

Exclusive advantages:
4S frame construction - 4 times stronger than a tubular profile construction WEIGHT 650kg
EASY LIFT system - a crank lifting mechanism allows you to gently lift even the heaviest cars

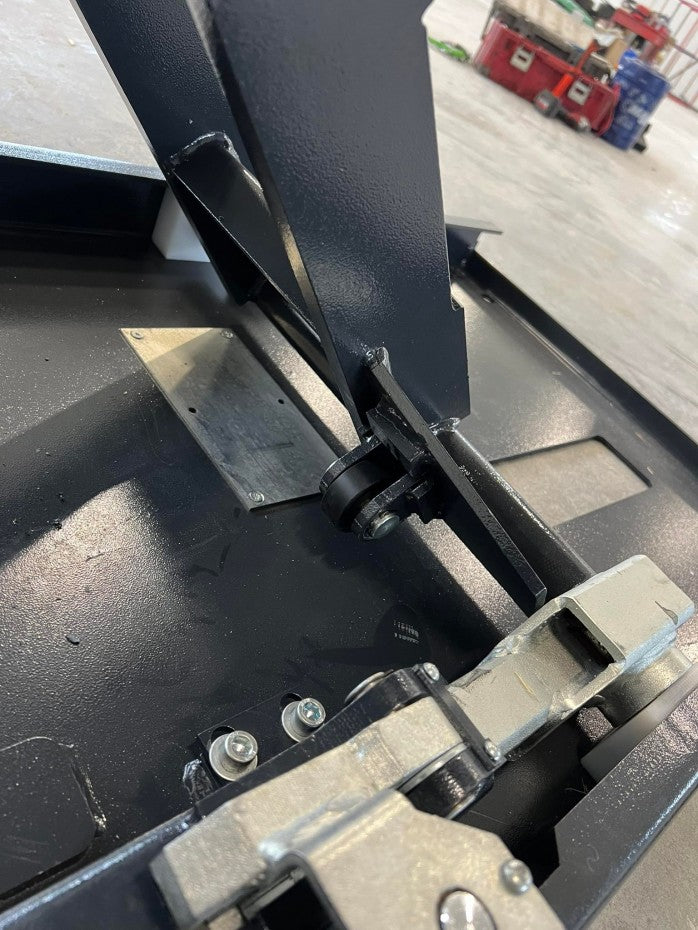

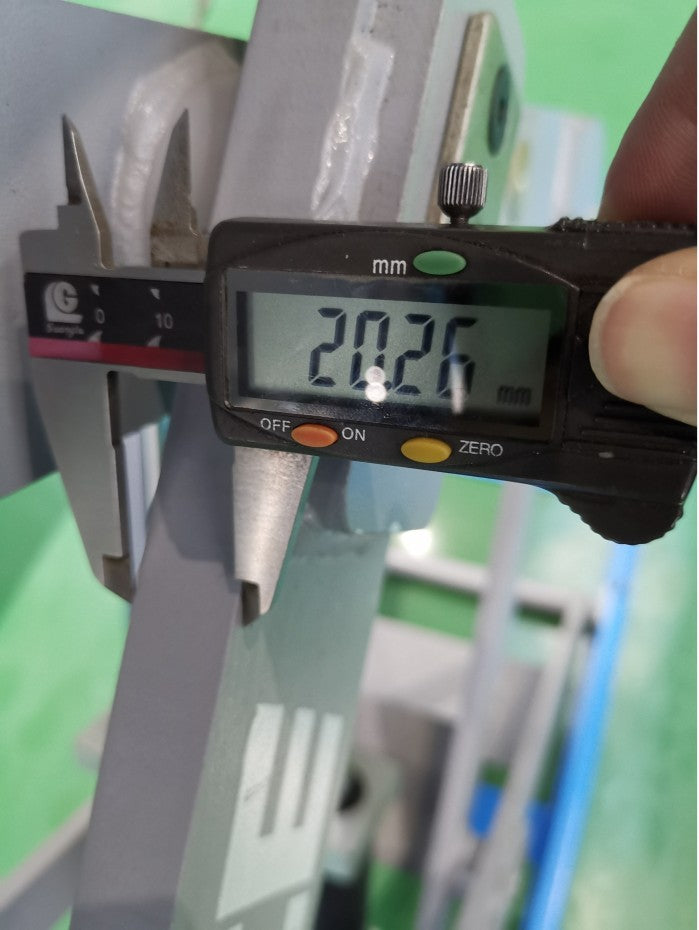

Scissor elements thickness as much as 20 mm

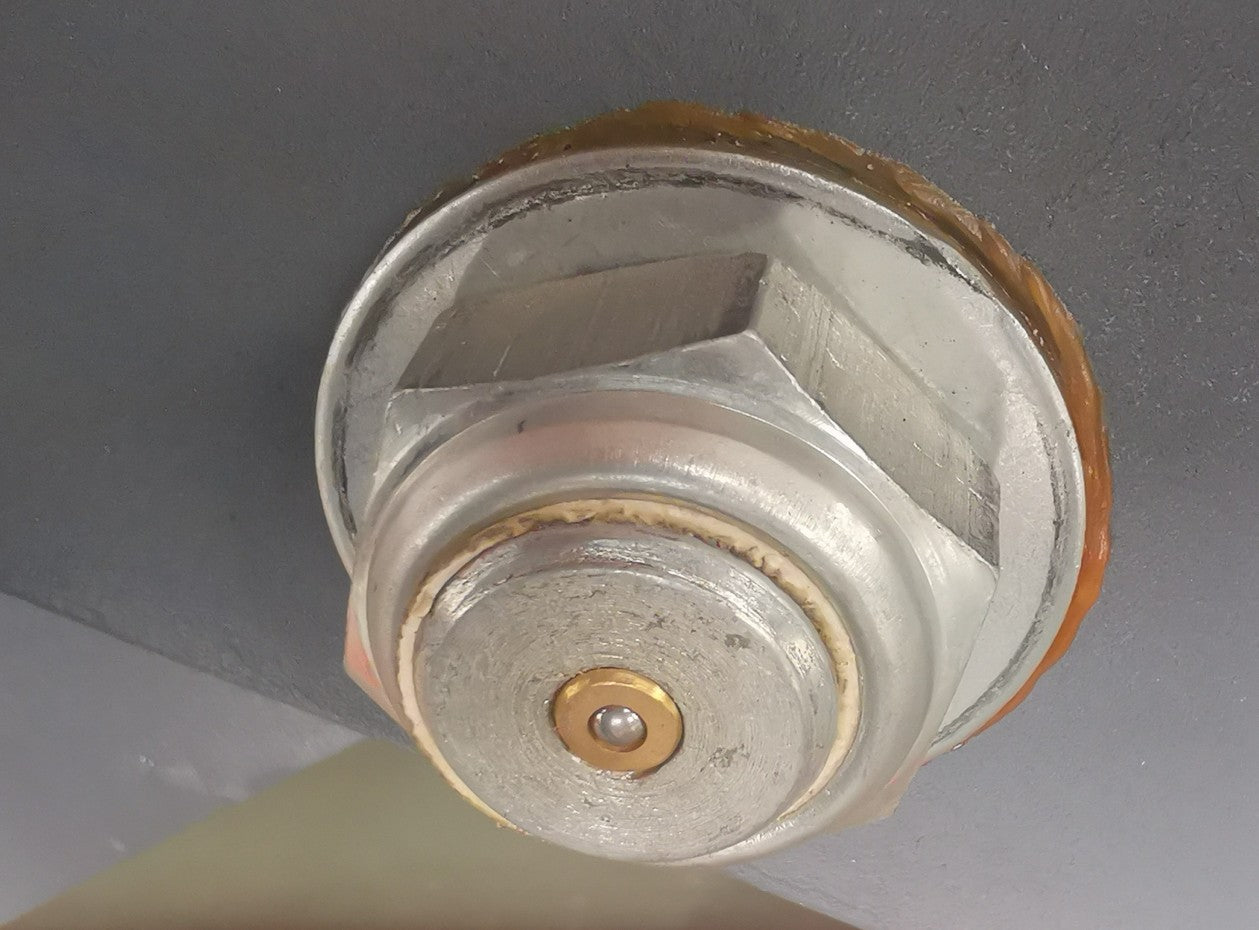

Integrated lubrication points for easier lift maintenance

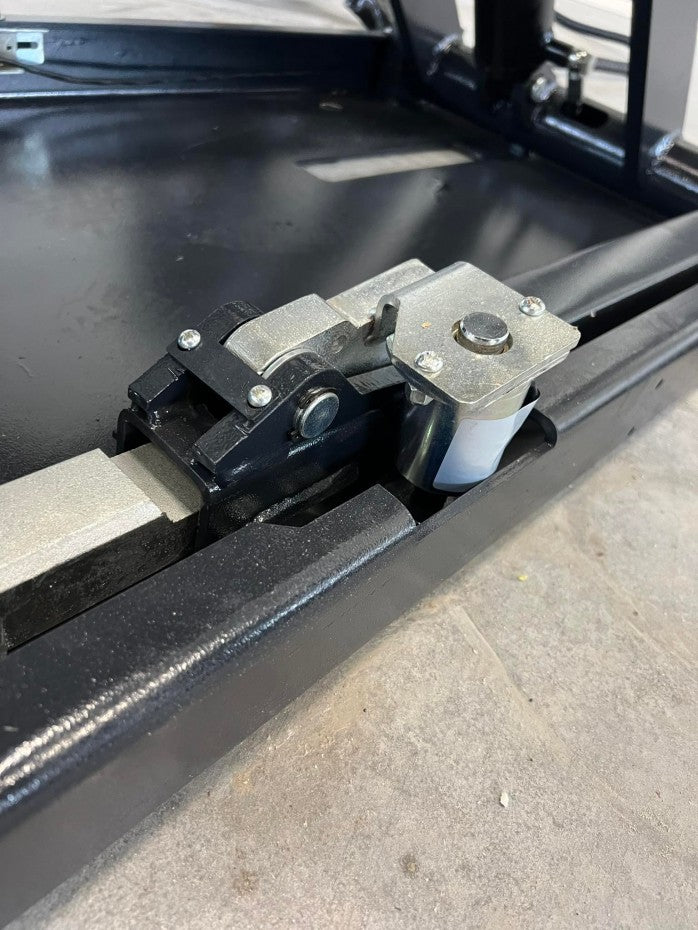

ELECTROMAGNETIC safety lock control

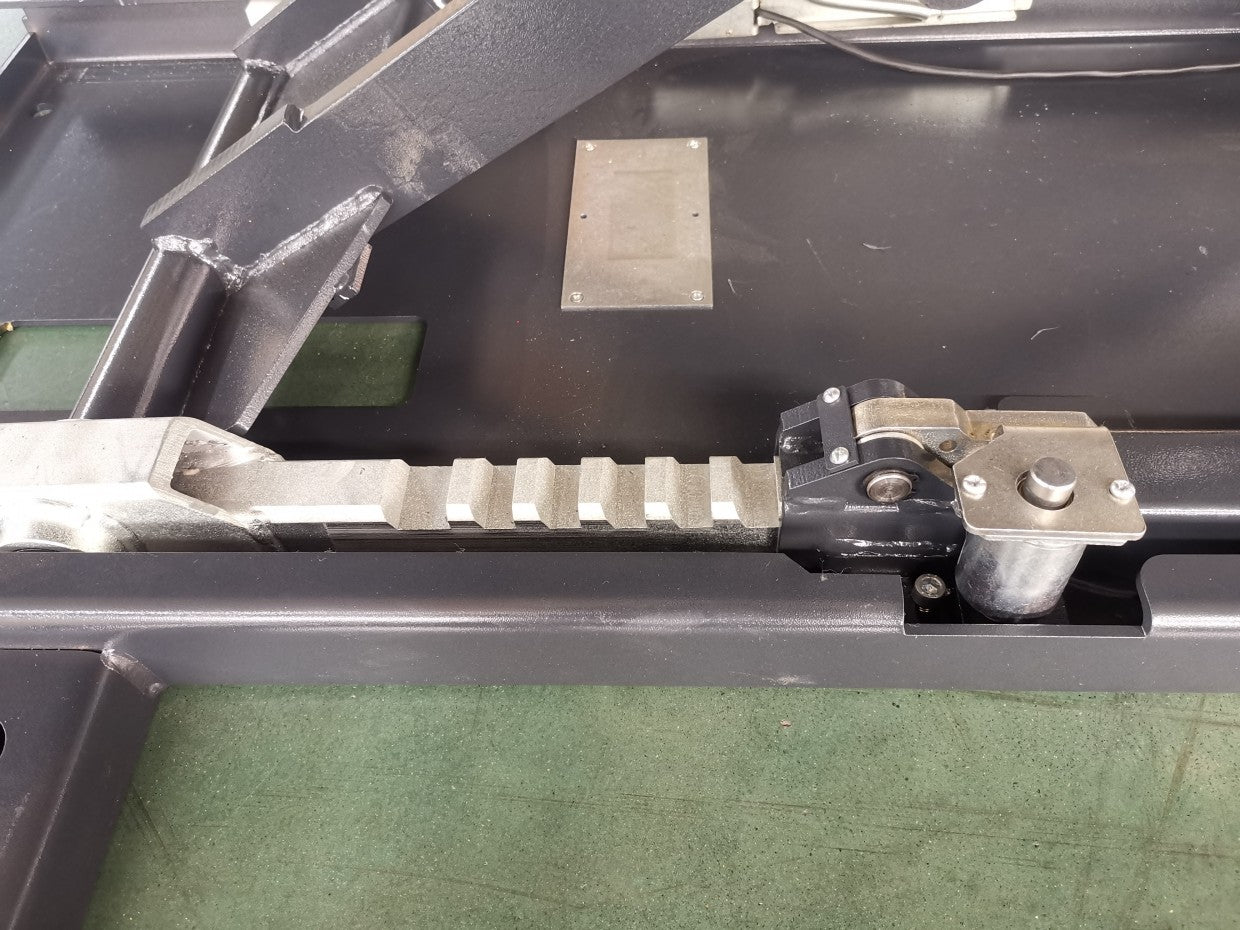

Multi-tooth high-RELIABILITY height locks
Wheels included for easy lift transportation
High-quality hydraulic pump with forced cooling and aluminum housing
230V single-phase power supply - NO three-phase input required!
Parachute hydraulic valve
Lifting height limiter
CE certificate

Technical specifications:
Maximum lifting capacity - 3000 kg;

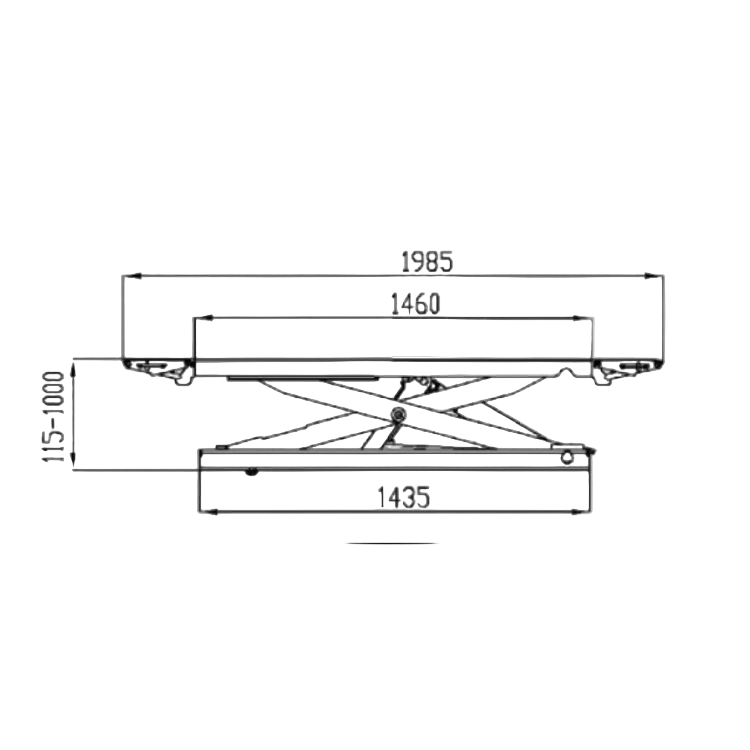

Lifting height - 1000 mm;
Minimum height - 115 mm;
Hydraulic pump power - 2.2 kW;

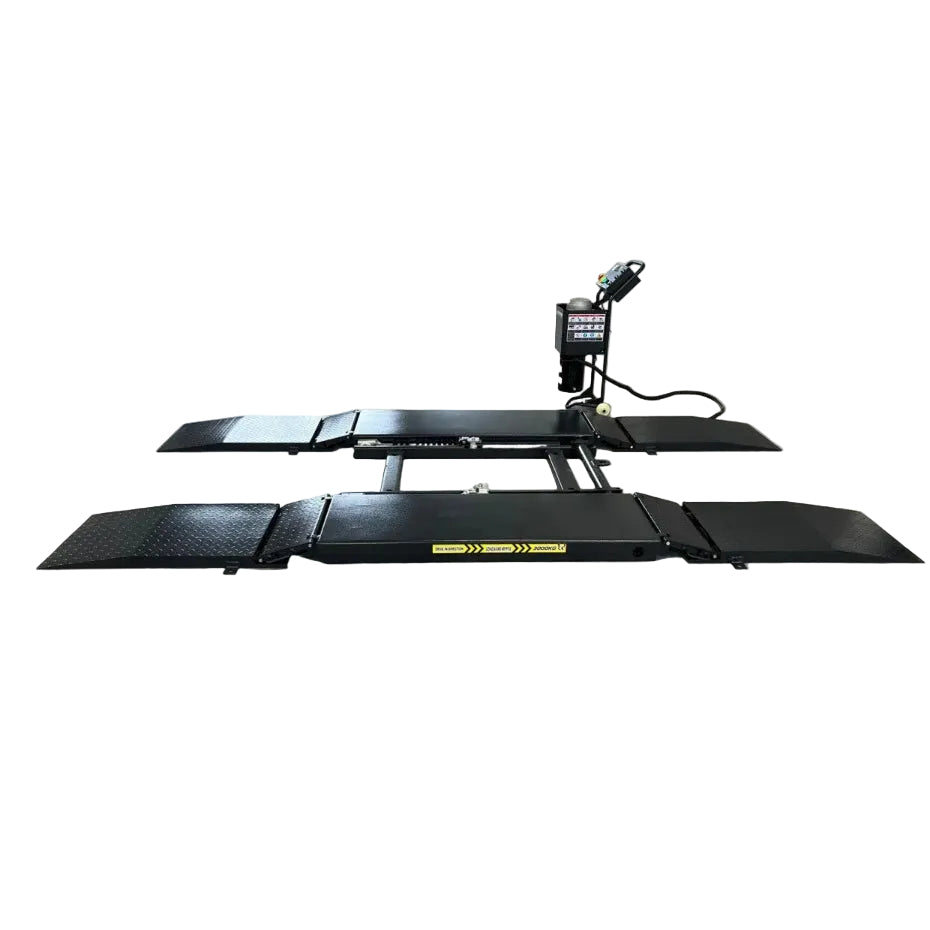

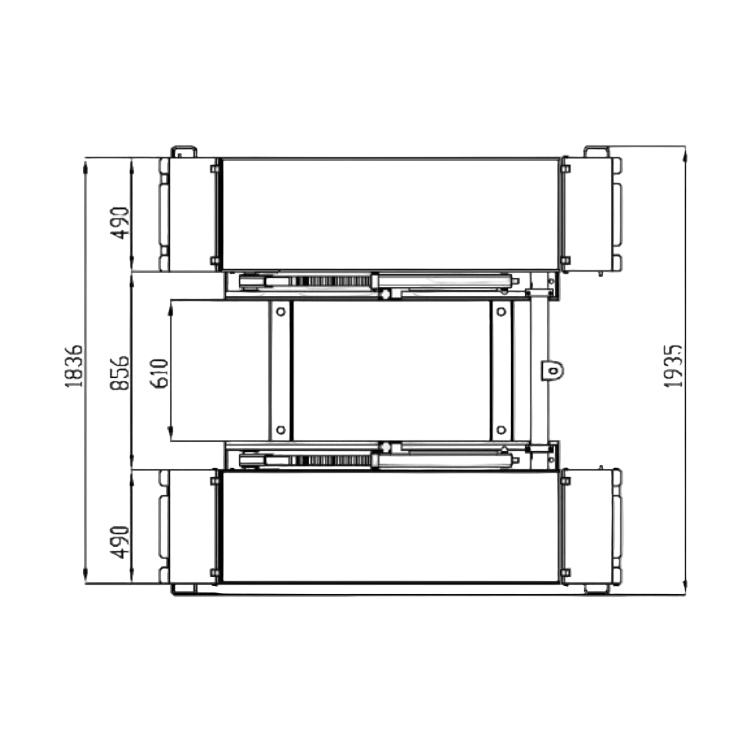

Platform length – from 1400 to 1985 mm;
Platform width – 530 mm;
Power supply – 230V (single-phase) or 400V (three-phase)* - MUST be specified when ordering

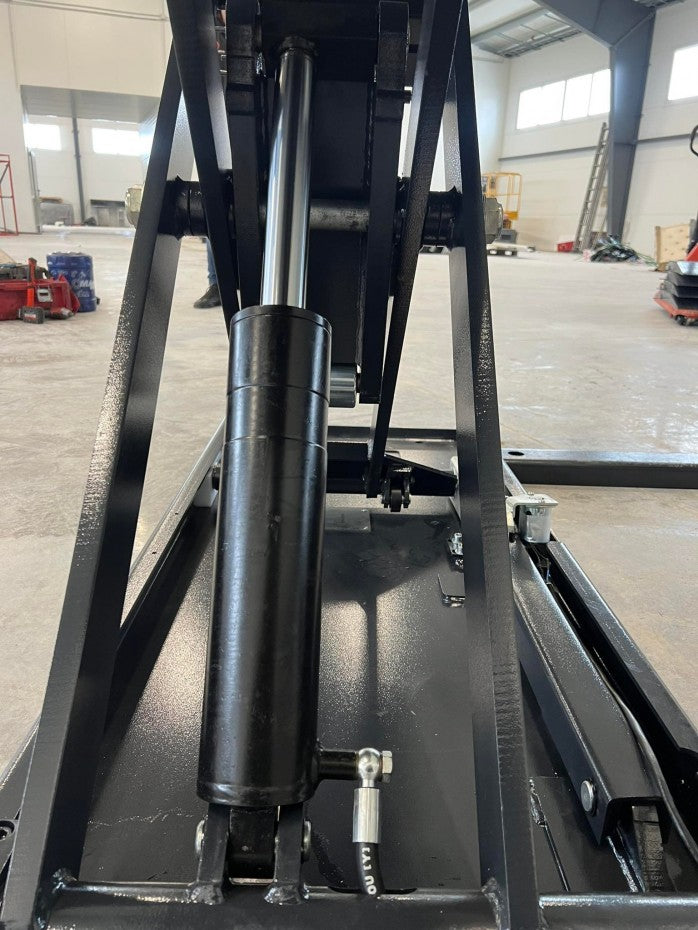

Number of cylinders – 2;
Cylinder operating principle – “master-slave”;
Operating principle – electro-hydraulic;
Height locks – ELECTROMAGNETIC;
24 V control voltage;

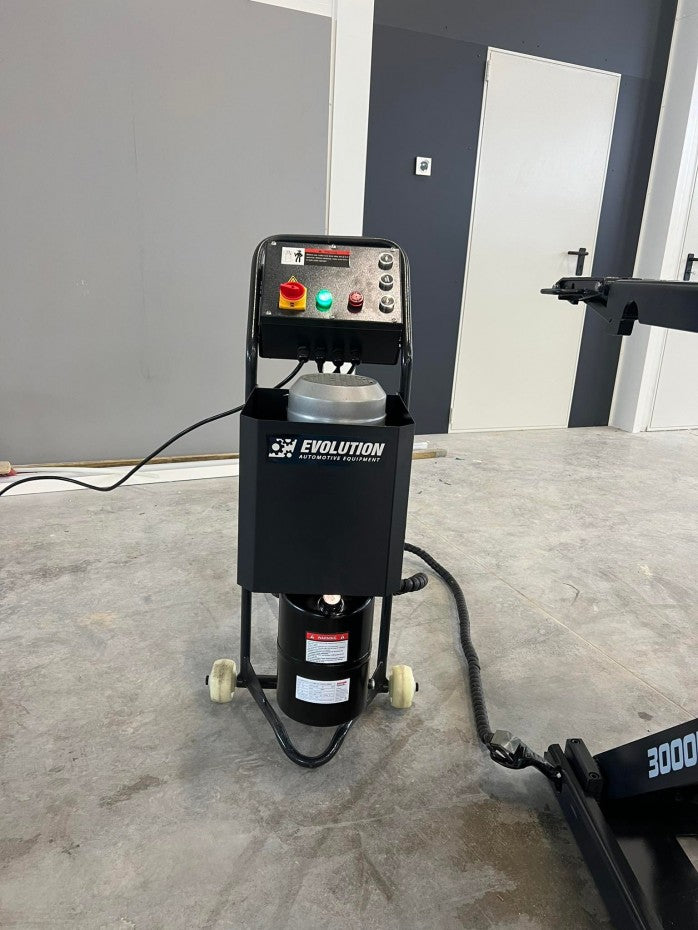

Mobile control panel;
CE certificate of conformity;
High-quality electric motor with aluminum housing;
Weight – 650 kg;
