EVO-2T Folding engine crane - winch EVOLUTION 2000kg.

Hydraulic Shop Crane (Foldable Engine Hoist)

This professional-grade hydraulic hoist is designed for lifting, moving, and holding heavy automotive components (engines, transmissions) and other loads weighing up to 2 tons (depending on the boom extension).

Key Features:

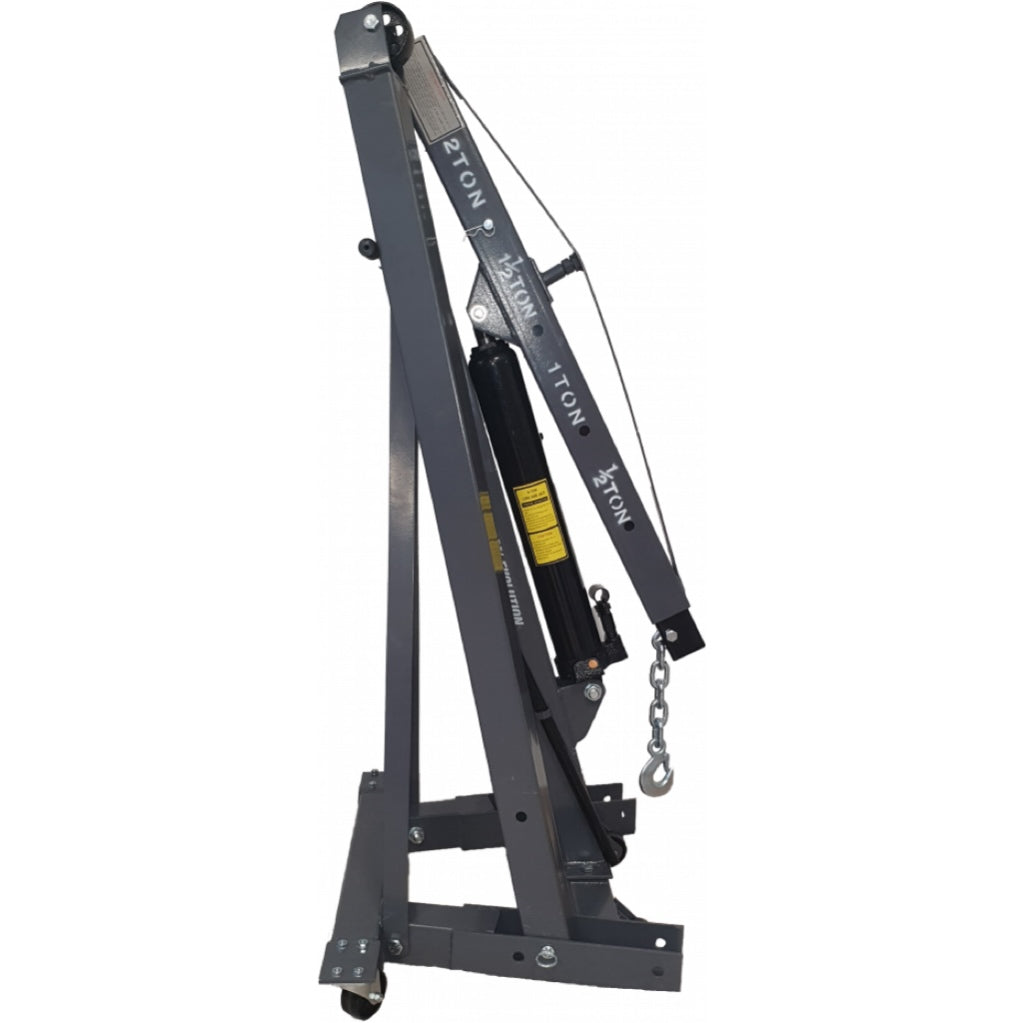

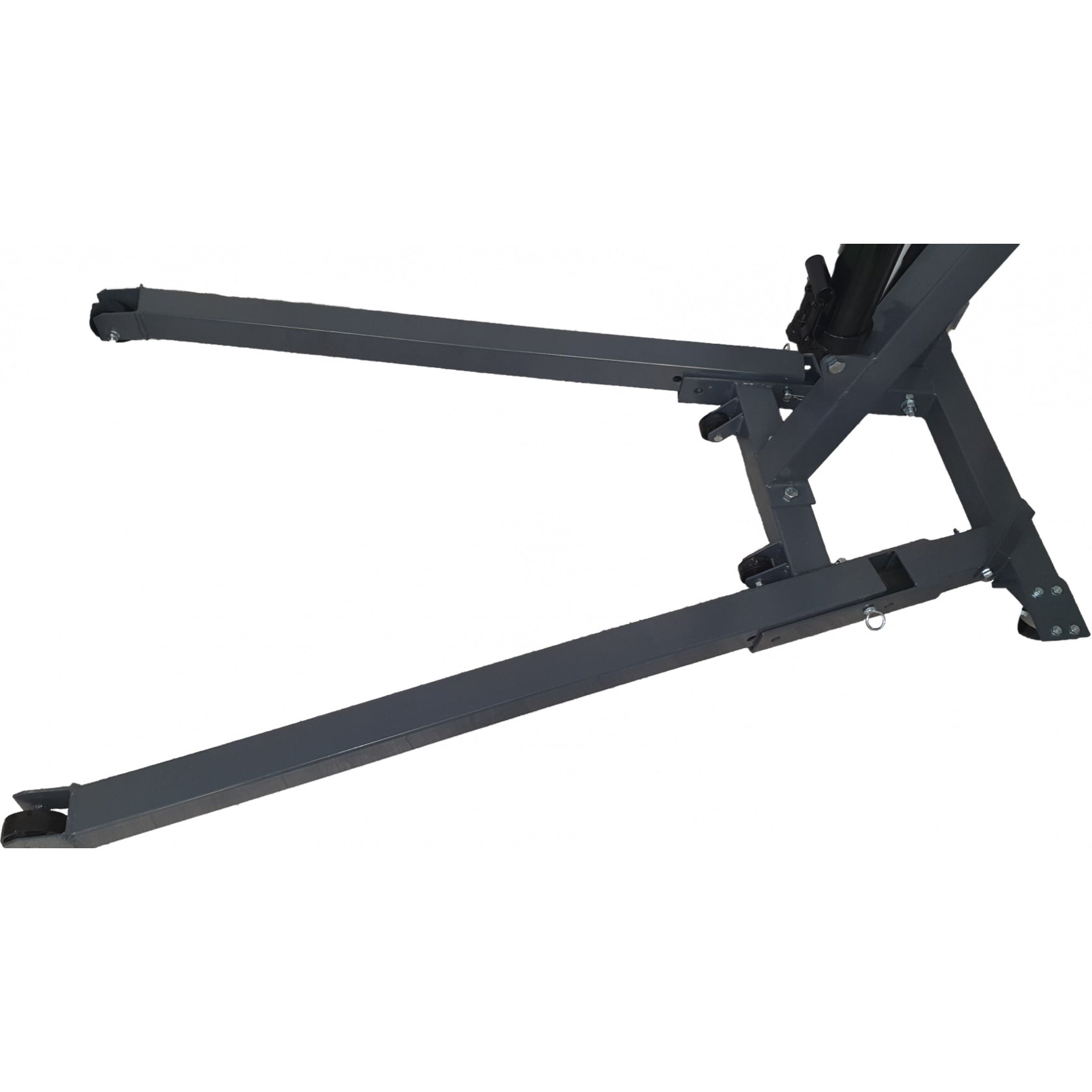

• Foldable Design: The crane legs fold upward, allowing for easy storage and saving valuable floor space in your garage or workshop when not in use.

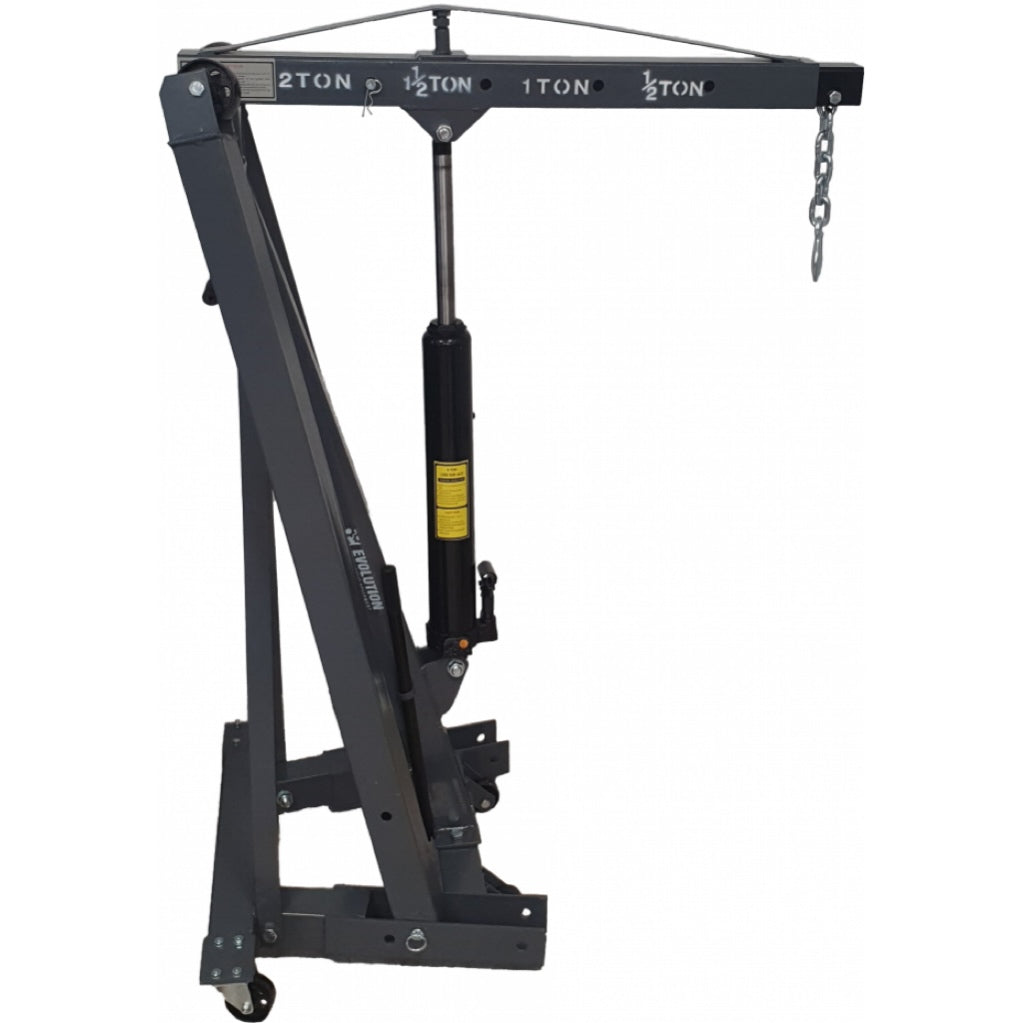

• Adjustable Boom: The telescopic boom features 4 fixed positions. Note that lifting capacity increases as the boom is retracted (shorter length = higher capacity).
• Reliable Hydraulics: The heavy-duty hydraulic ram provides smooth lifting and controlled lowering via a simple twist-release valve handle.
• Easy Maneuverability: Equipped with six heavy-duty swivel casters, allowing for 360-degree movement even when carrying a heavy load.
• Built to Last: Constructed from heavy-duty structural steel with a powder-coated finish for durability and resistance to rust and deformation.

Technical Specifications (Typical):

Applications:

• Removing and installing internal combustion engines.
• Servicing transmissions and axles.
• Moving heavy machinery or crates in a warehouse setting.

Safety Tip: Always ensure that the locking pins for the boom and legs are fully engaged before use, and only operate on a flat, level, and solid surface.

Technical characteristics:

• Maximum lifting capacity: 2000kg;
• Lifting range up to 2000mm;
• Arm lengths: 1030/1200/1370/1540 mm;
• Dimensions: 1700x1070x1455 mm;
• Folded crane dimensions: 630x755x1455mm;
• Lifting type: Manual hydraulic
• Type: Foldable
• Weight: 90kg;
