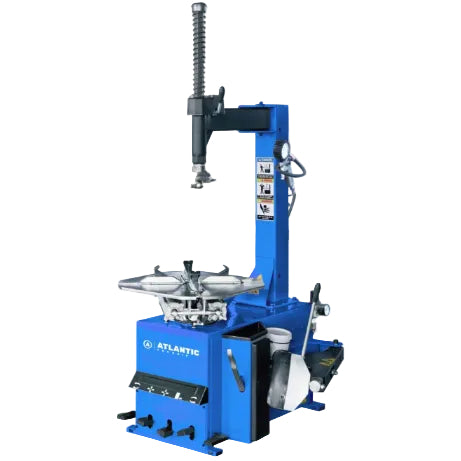

ATLANTIC TECHNIK ATC-22 semi-automatic tire changing machine

The ATC-22 semi-automatic tire changer is a robust and reliable device designed for quick tire mounting and demounting.

ATLANTIC TECHNIK ATC-22 semi-automatic tire mounting machine is designed for working with passenger and commercial vehicle rims. It is a versatile and practical device that allows you to safely and quickly mount and dismount tires.

The machine is equipped with pneumatic clamping, a side tire presser and an integrated air inflation system, which ensures efficient work. The sturdy construction and protective elements protect the rims from scratching, and the convenient control system makes it easy to work even with more complex tires.

The device is an excellent choice for car repair shops looking for a reliable and versatile solution adapted for everyday use.

Features:

Steel mounting head with guards – protects the rim from damage

Pneumatic locking with 4 claws

Side tire presser – for fast and safe work.

Durable construction – adapted for intensive use.

Technical characteristics

Rim clamping outside: 10" – 21"

Rim clamping inside: 12" – 24"

Max. tire diameter: 1070 mm

Max. tire width: 14"

Working pressure: 8–10 bar

Engine power: 0.75 kW / 1.1 kW

Power supply: 380 V / 220 V / 110 V

Dimensions: 1180 × 1000 × 1840 mm

Packaging dimensions: 985 × 770 × 885 mm

Weight (net/gross): 193 / 213 kg

Package contents:
Mounting - 1 pc
Plastic protection for grippers - 1 pc
Plastic protection for mounting head - 1 pc
Plastic protection for tire press - 1 pc
