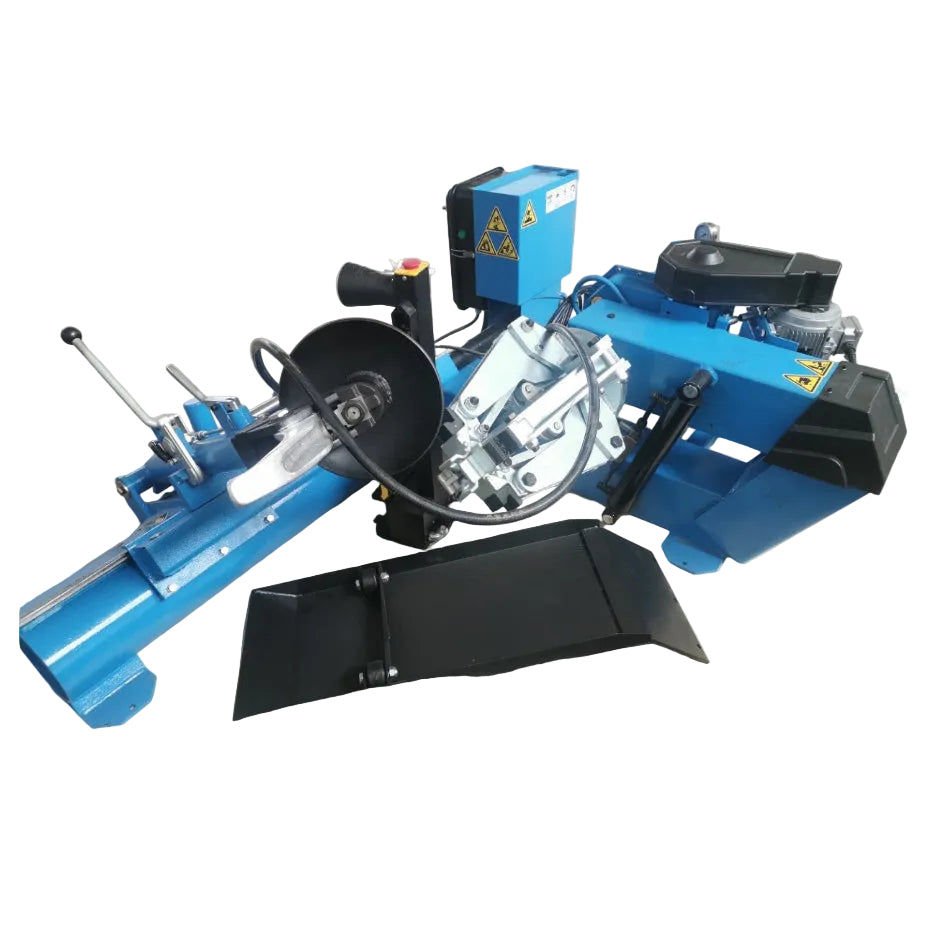

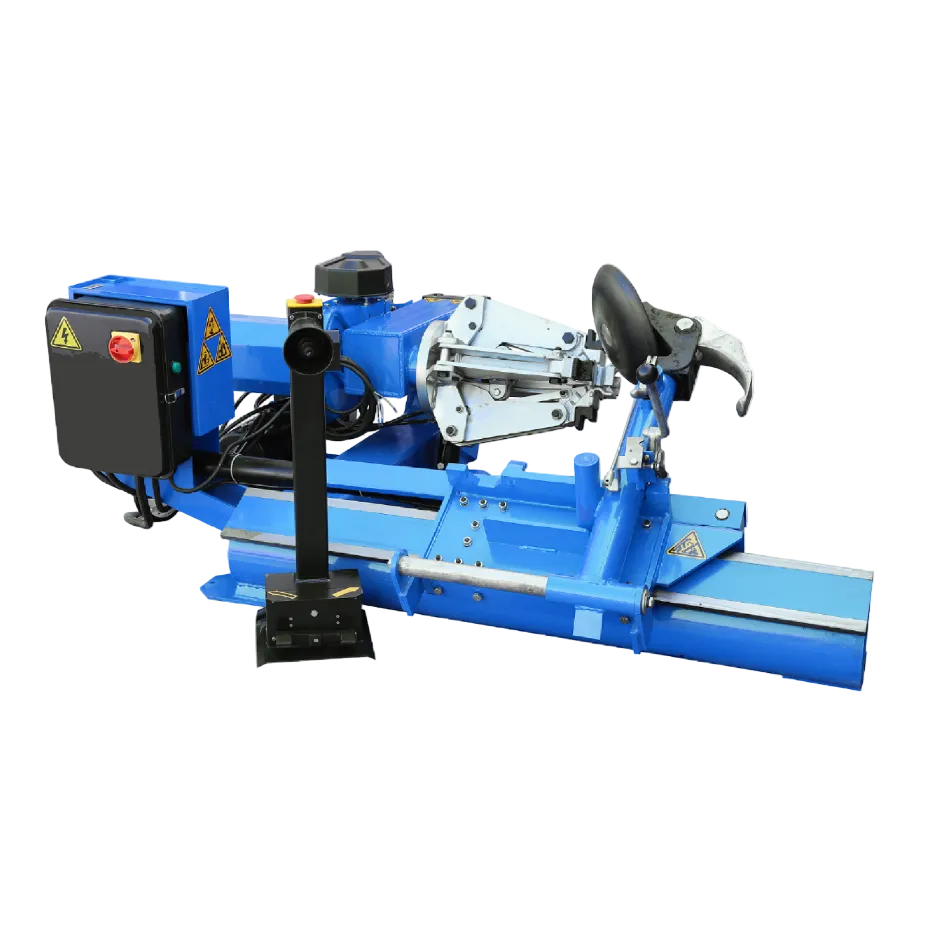

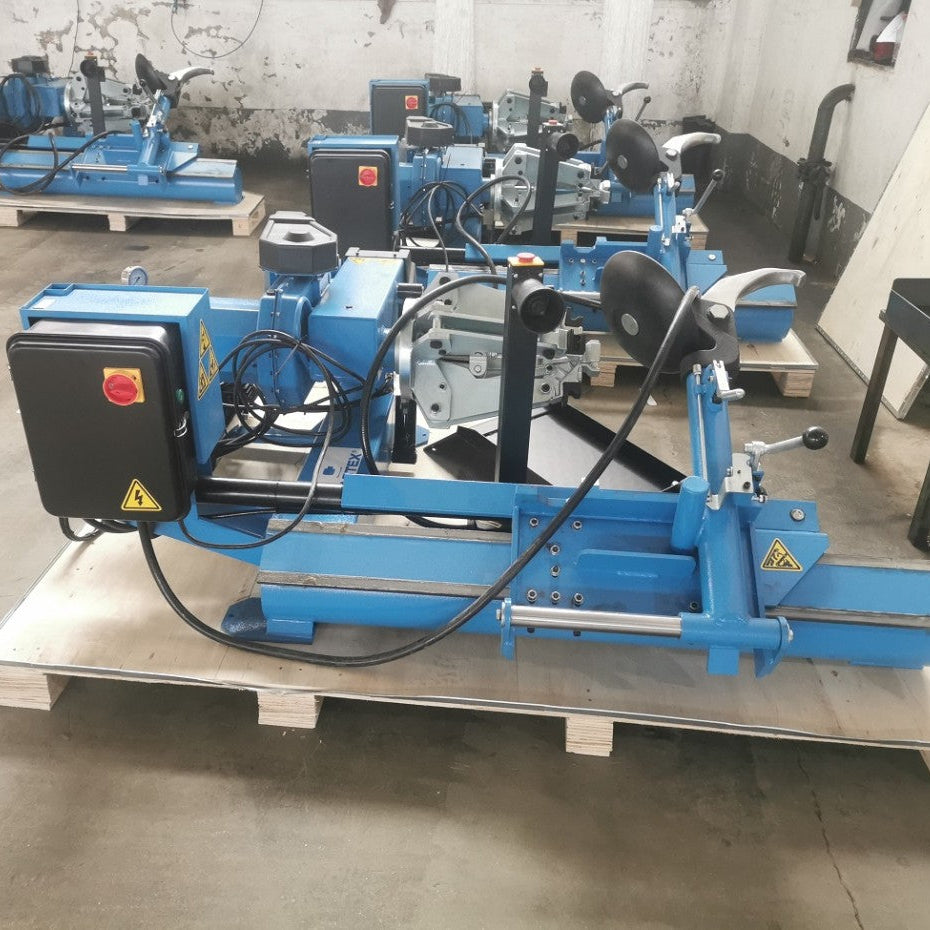

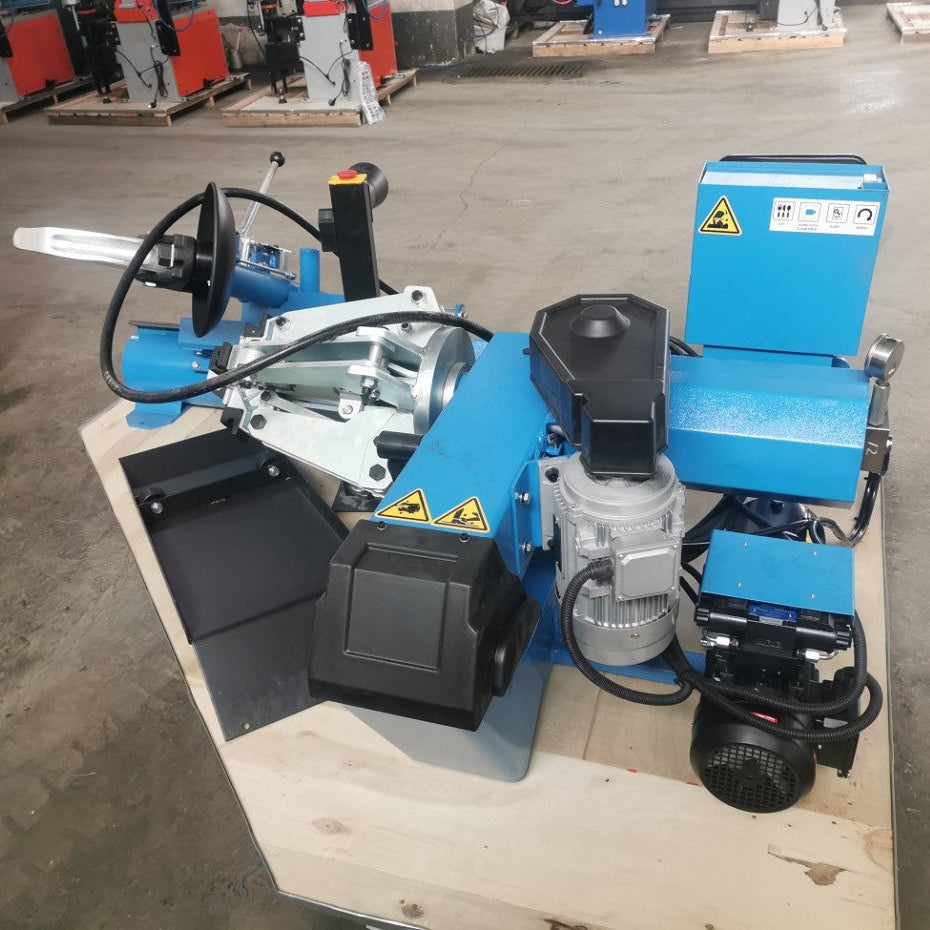

ATC26 TRUCK Assembly machine for trucks up to 26'' ATLANTIC

Maximum rim width - 780mm

Maximum wheel diameter - 1600mm

Main pump power - 1.5kW

Additional pump power - 2.2kW

Advantages:

• Reliable and sturdy construction
• Mobile wired control manipulator
• Maximum wheel diameter up to 1600 mm
• Maximum rim diameter up to 26"
• High-class mechanical and hydraulic components;
• Safe and stable 24v operating voltage
• The lifting arm and the gripper are driven by a hydraulic system
• Large gripper adjustment options

Technical specifications:

• Maximum grip – 26"
• Minimum grip – 14"
• Maximum rim width – 780 mm
• Maximum wheel diameter – 1600 mm
• Number of grippers – 4 pcs;
• Main pump power – 1.5 kW
• Additional pump power - 2.2k kW
• Power supply – 110/220/380V
• Working pressure - 130bar

Overall dimensions:

• Width - 1504mm
• Length - 1891mm
• Height - 761mm
• Weight - 520kg
