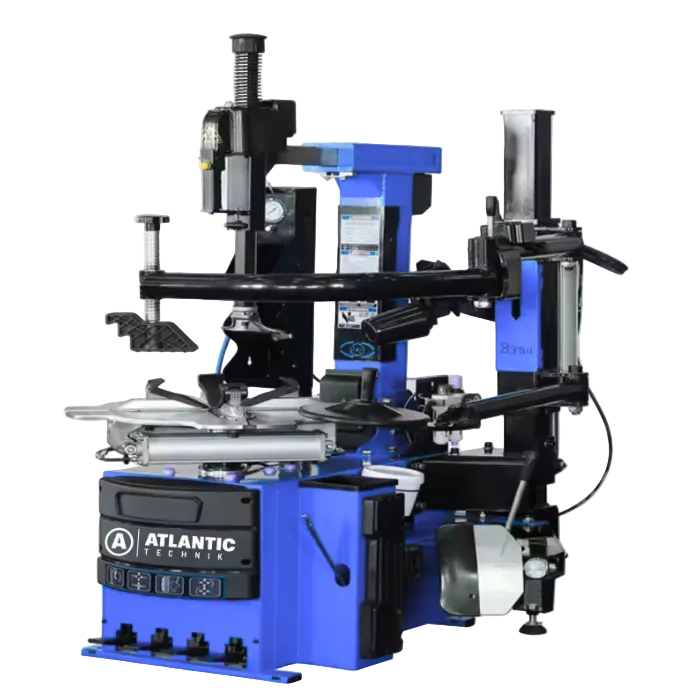

ATC-28 tire changing machine

ATC-28 – reliable tire changer with auxiliary arm, 230 V voltage, 1.1 kW power and sturdy construction. Designed for wheels up to 28", tires up to 14" wide – perfect for professional use in workshops.

Main features

The ATC-28 tire mounting machine is designed to work with various types of passenger car and minibus wheels.
The integrated auxiliary attachment (the so-called "helper arm") facilitates mounting with rigid tires, maintains their position and reduces the operator's physical strain.
The machine has a sturdy construction with an S41 hexagonal axle, which ensures resistance to deformation and reliable operation in intensive conditions.
The mounting head is equipped with plastic guards - they protect aluminum or painted rims from scratches.

Technical parameters

External rim clamping range – from 12 to 25 inches
Internal rim clamping range – from 15 to 28 inches
Maximum mounted wheel diameter – up to 1140 mm
Tire width – from 3 to 14 inches
Recommended operating air pressure – 8–10 bar
Electrical voltage – 230 V
Motor power – 1.1 kW
Table rotation speed – about 7 revolutions per minute
Machine dimensions – 1150 × 1050 × 1760 mm
Machine packaging dimensions – 1150 × 900 × 1020 mm
Auxiliary arm dimensions – 1020 × 380 × 350 mm
Auxiliary arm packaging dimensions – 1020 × 380 × 350 mm
Net weight – 330 kg
Gross weight – 360 kg
Auxiliary attachment weight – 112 kg

Benefits and uses

The auxiliary attachment helps to mount rigid tires without additional tools or pressure.
Plastic guards in the mounting head protect the rims from damage.
Robust construction and hexagonal axle ensure long-lasting operation even in intensive working conditions.
Pneumatic system allows you to work quickly and comfortably.
230 V electrical voltage allows the device to be used in conventional workshops without additional electrical solutions.

Who are they for?

The ATC-28 tire mounting machine with auxiliary attachment is designed for professional use in car services and tire fitting workshops.
It is a reliable solution for both standard and complex tire mounting, when precision, safety and productivity are required.
