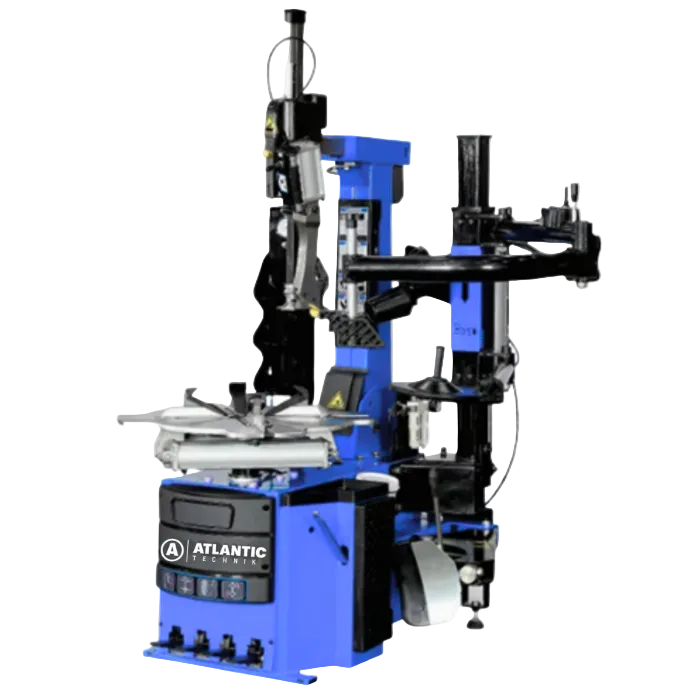

ATC-28 PRO leverless tire changer

ATC-28 PRO – stand-alone tire changer with auxiliary arm, 2-speed table rotation, sturdy construction, 400 V voltage and 1.1 kW power. Designed for wheels up to 28", tires up to 14" wide – everything for professional work in workshops.

Main features

The mountless system allows you to mount tires without a traditional mount, making it faster, safer and without the risk of damaging the rims. This technology is ideal for low-profile and Run Flat tires.
The integrated helper arm facilitates mounting with rigid tires, maintains their position and reduces the operator's physical strain.
The two-speed rotation function allows the operator to adapt the work pace to the situation - slow mode for precision, fast - for faster work.
The machine has a sturdy construction with an S41 hexagonal axis, which ensures resistance to deformation and reliable operation in intensive conditions.
The mounting head is equipped with plastic guards - they protect aluminum or painted rims from scratches

Technical parameters

External rim clamping range – from 12 to 25 inches
Internal rim clamping range – from 15 to 28 inches
Maximum mounted wheel diameter – up to 1140 mm
Tire width – from 3 to 14 inches
Recommended operating air pressure – 8–10 bar
Electrical voltage – 400 V
Motor power – 1.1 kW
Table rotation speed – about 7 revolutions per minute
Rotation modes – 2 speeds
Machine dimensions – 1150 × 1050 × 1760 mm
Machine package dimensions – 1150 × 900 × 1020 mm
Auxiliary arm dimensions – 1020 × 380 × 350 mm
Auxiliary arm package dimensions – 1020 × 380 × 350 mm
Net weight – 330 kg
Gross weight – 360 kg
Auxiliary attachment weight – 112 kg

Benefits and uses

The tool-free system allows you to work safely and efficiently with new generation tires.
The auxiliary attachment helps you mount rigid tires without additional tools or pressure.
The two-speed rotation function allows you to flexibly choose the working speed as needed.
Plastic guards in the mounting head protect the rims from damage.
The robust construction and hexagonal axle ensure long-lasting operation even in high flows.
The pneumatic system allows you to control the machine quickly and without much effort.
400 V electrical voltage and 1.1 kW motor power ensure stable and powerful work.

Who are they for?

The ATC-28 PRO tire changer with a mountless system, two-speed rotation function and auxiliary attachment is designed for professional use in car services and tire fitting workshops.
It is a great solution for both standard and complex tires, where safe, precise and fast mounting is required.
