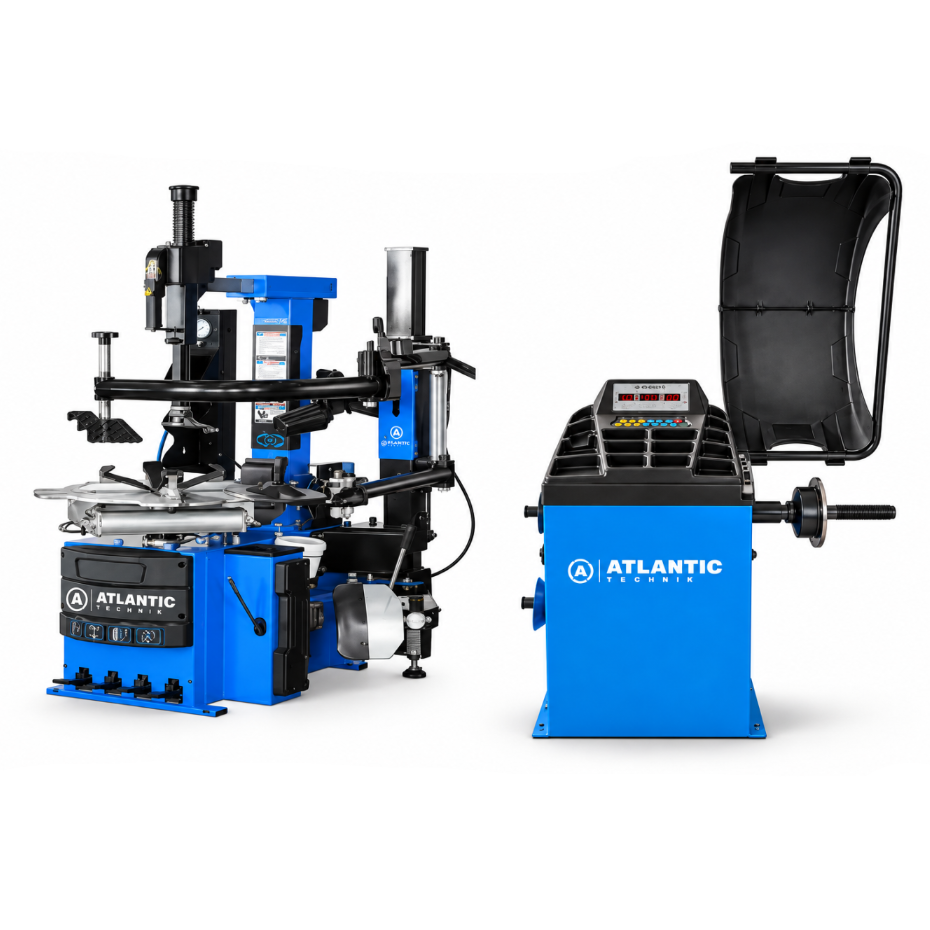

ATLANTIC LASER SET PLUS – tire mounting and wheel balancing machine set
ATLANTIC LASER SET PLUS is a two-device set for fast, convenient and accurate car wheel service. The set includes the ATC-28 tire mounting machine with an auxiliary arm and the ATB-400 wheel balancing machine with a static laser .
This combination of equipment allows you to perform basic tire mounting, demounting, and wheel balancing tasks in one workplace. The sturdy construction of the mounting machine, the auxiliary arm, and the automatic balancing functions help reduce the operator's physical strain, save time, and ensure accurate work results.
The set includes:

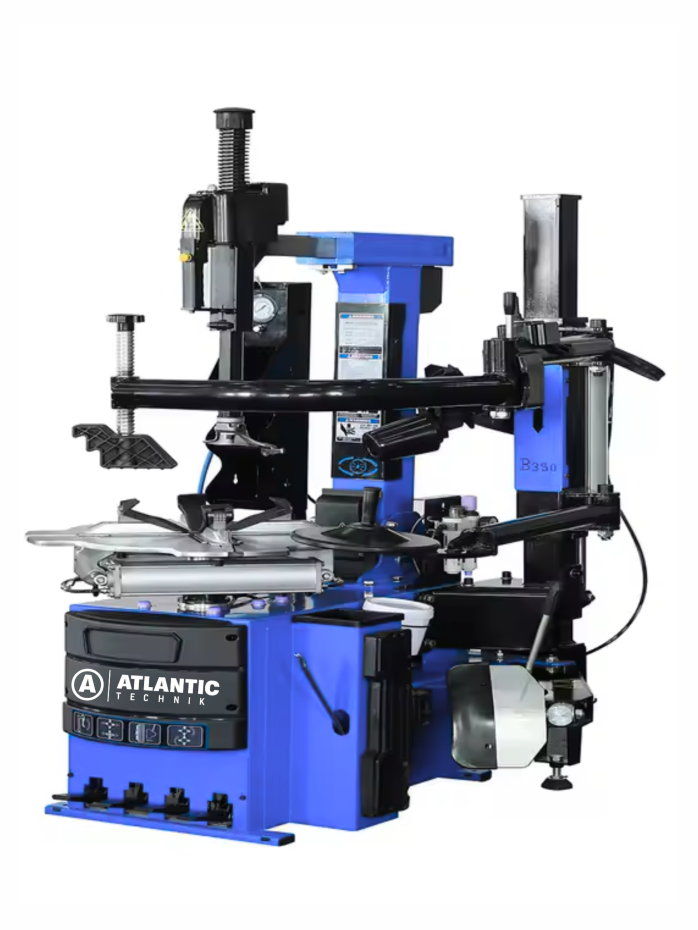

1. ATC-28 tire changing machine with auxiliary arm
ATC-28 is a robust tire changing machine designed to service passenger car and minibus wheels. The machine is designed to work with various types of tires, including rigid and low-profile tires.
The included Helper Arm makes mounting and dismounting more difficult tires easier. It helps to press and hold the tire in the correct position, making the job more comfortable and requiring less physical effort.
The machine uses a reinforced S41 hex axle , ensuring structural stability and resistance to deformation. The mounting head has plastic guards that help protect aluminum and painted rims from scratches.
The main advantages of ATC-28:
- The helper arm makes it easier to mount rigid and low-profile tires
- Reinforced S41 hexagonal axle ensures structural strength
- Plastic mounting head protectors help prevent rim damage
- Pneumatic system ensures comfortable and smooth operation
- Ability to mount tires on rims up to 28"
- 230 V power supply allows the machine to be used in a regular car repair shop electrical network
ATC-28 technical characteristics:
- External rim locking range: 12-25"
- Internal rim locking range: 15-28"
- Maximum wheel diameter: 1140 mm
- Tire width: 3–14"
- Recommended operating air pressure: 8–10 bar
- Power supply: 230V
- Motor power: 1.1 kW
- Table rotation speed: about 7 rpm.
- Machine dimensions: 1150 × 1050 × 1760 mm
- Machine tool packaging dimensions: 1150 × 900 × 1020 mm
- Machine net weight: 330 kg
- Machine gross weight: 360 kg
- Dimensions of the auxiliary arm: 1020 × 380 × 350 mm
- Helping arm weight: 112 kg

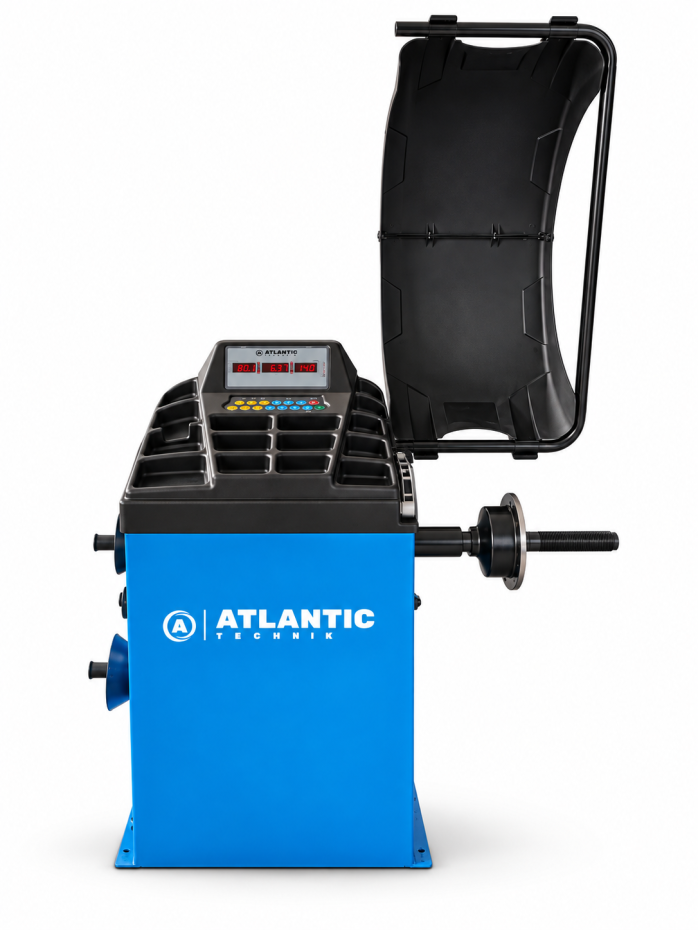

2. ATB-400 wheel balancing machine with laser
ATB-400 – wheel balancing machine designed for precise and fast balancing of passenger car wheels. The machine is equipped with an automatic rim parameter measurement system, a static laser and balancing programs that make everyday work easier.
The device automatically measures the distance to the balancing plane, the rim diameter and the positions of the balancing planes of light alloy rims. The width of tin rims is entered manually.
A static laser precisely marks the installation location of the adhesive weights at the 9 o'clock position. The weights can also be positioned using an automated gauge, while the hammered weights are installed at the 12 o'clock position.
The AUTO ALU S function automatically selects the balancing mode and weight installation method based on the measured rim parameters.
The SPLIT program allows you to hide the adhesive weights behind the rim spokes, maintaining the aesthetic appearance of the rim. The OPT function helps optimize the imbalance weight.
The machine tools are also equipped with AUTO DIAGNOSTICS and AUTO CALIBRATION functions. They allow you to control sensor parameters and facilitate equipment maintenance.
Balancing accuracy is ±1 g , and the balancing cycle for one wheel lasts about 7 seconds .
The main advantages of ATB-400:
- Automatic measurement of the distance to the balancing plane
- Automatic rim diameter determination
- Automatic determination of balancing planes for alloy wheels
- Static laser for positioning adhesive weights
- AUTO ALU S – automatic balancing mode selection
- SPLIT – hiding weights behind the rim spokes
- OPT – Imbalance Weight Optimization Program
- AUTO DIAGNOSTICS – sensor parameter control
- AUTO CALIBRATION – automatic calibration function
- Rounding option: 5, 10 or 15 g
- Balancing accuracy: ±1 g
- Balancing cycle: about 7 s
ATB-400 technical characteristics:
- Rim diameter: 10–24"
- Rim width: 1.5–17.5"
- Maximum wheel diameter: 1000 mm
- Maximum wheel weight: 65 kg
- Balancing accuracy: ±1 g
- Balancing time: about 7 s
- Maximum rotation speed: 200 rpm.
- Power supply: 230V / 50Hz
- Power: 0.2 kW
- Laser type: static
- Angular resolution: 2.8125° (360/128)
- Measuring the width of can rims: manual
- Dimensions with shaft and cover: 1008 × 870 × 1550 mm
- Package dimensions: 950 × 560 × 1200 mm
- Package weight: 100 kg
ATB-400 package:
- Rim width gauge – 1 pc.
- Weight removal pliers – 1 pc.
- Quick-clamping handle with two covers – 1 pc.
- Set of 4 centering cones
- Calibration weight – 1 pc.
Advantages of the ATLANTIC LASER SET PLUS
- Two devices in one set – a tire mounting and wheel balancing machine for everyday wheel service work.
- Convenient tire mounting – the ATC-28 assist arm makes it easy to work with rigid and low-profile tires.
- Precise balancing – the ATB-400 laser helps you quickly and accurately determine weight installation locations.
- Automatic functions – reduce the need for manual measurements and speed up the wheel balancing process.
- Sturdy construction – the machine is designed for intensive use in car repair shops and tire fitting workshops.
- 230 V power supply – both devices operate from a standard single-phase electrical network.
What is ATLANTIC LASER SET PLUS for?
This kit is suitable for car repair shops, tire fitting shops and wheel service centers that require reliable and easy-to-use equipment.
ATLANTIC LASER SET PLUS is a practical choice for both new wheel service workstations and upgrades to existing equipment. The combination of the ATC-28 mounting machine and the ATB-400 balancing machine allows for convenient tire change and wheel balancing operations.
